Distillation Methods and Troubleshooting Wiped Film Evaporators

So you have grown, harvested, dried, bucked, and extracted your hemp into CBD oils. The next step is to dewax, remove any solvent, and then distill the oil to turn it into a beautiful golden oil. However, as you start to distill the oils, you notice that instead of a beautiful, clear, golden color, your final product is an unsightly dark brown. Further, the production rate is not very good.

You might be wondering what happened with your distillation equipment or distillation methods to cause this. What could have been done to improve the color and clarity of the CBD oil? What steps can be taken to improve throughput? In this article, we examine some of the common root causes for dark extracts that are processed with wiped film distillation equipment and offer easy to implement solutions.

How to optimize distillation methods for clarity and quality

Distillation methods must optimize throughput, color and clarity in order to be successful. Throughput is how much the distillation equipment will produce per unit time. Clarity is a measure of the oil’s opacity and transmission. Color is how the eye perceives the absorption and reflection of light of an object.

To optimize distillation, many different temperatures, vacuum, flow rate, and angular velocity must be addressed. Likewise, troubleshooting of the same systems also addresses these key method variables. The following table summarizes the root causes, resulting oil, and also suggests a solution to help solve the problem.

Table 1. Troubleshooting Table for Wiped Film Distillation Equipment

Problem Root Cause Solution
Dark Distillate
Entrained solvent with low boiling point Remove solvent completely
Incomplete decarboxylation Completely decarboxylate
Wiper blade misalignment or design Inspect and verify equipment operation
Input flow rate too high or RPM too high Decrease flow rate and or wiper rotation as required
Winterized oil quality Start with quality biomass free from seeds
Not enough passes or residence time is not long enough Slow down flow rate or try an additional pass
Still is not clean Ensure still cleanliness by disassembly

Is your distillate dark? We can help.

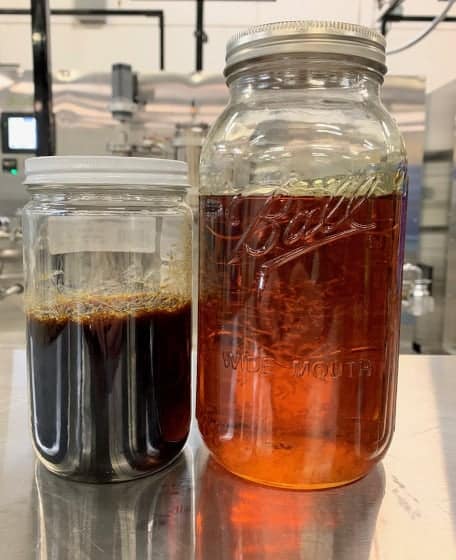

Let’s focus on dark distillate first. As is shown in table 1, dark distillate can be caused by inadequate solvent removal, inadequate decarboxylation, high inlet flow rates, or poor still maintenance. An example of this problem is shown in Figure 1. The oil on the left is dark and clearly potent as is indicated by the crystals forming on the side of the jar. In contrast, the oil on the right is light yellow or amber in color and semi transparent giving much better clarity and also commanding a much better market price.

darkvlight

How to avoid discoloration

All discoloration boils down to a couple concepts. First, the inside wall of the wiped film evaporator is very hot and the fluid that is being wiped across the surface must not sputter, splatter, splash, or drip.

What does cooking bacon have to do with troubleshooting wiped film evaporators?

Splattering in a wiped film or thin film evaporator are not unlike the splatters encountered when cooking bacon or hamburgers. When cooking bacon for example, water droplets to the hot oil may be introduced by adding uncooked bacon or perhaps water that was absorbed to the pan prior to heating up the bacon.

Phase changes and gas expansion

As the water encounters the hot oil surface, it begins to heat up and simultaneously sinks into the oil since water is more dense than oil. As the water sinks and the oil is 100°C or greater, the water will start to boil. This can happen very rapidly if the oil is much hotter than the boiling point of water. Upon boiling, the liquid undergoes a phase change and turns into a gas. As the gas expands through the oil, the hot oil splatters all over the cook and burns anyone who is in the path. Ouch.

Splattering in a wiped film caused by boiling solvent

Now, let’s go back to our wiped film evaporators. We know several facts: 1. Since the boiling point of the winterized oil is quite high, 2. the boiling point of CBD is also quite high, 3. The evaporator or still wall is kept at a very high temperature. 4. The boiling point of entrained solvents is low.

These four facts set up a situation similar to bacon splattering. As the material is pumped into the still and is wiped across the surface forming a thin film, the solvents entrained in the oil begin to flash off and splatter, carrying with it dark winterized oil. This dark oil lands on the cold finger and makes the resulting distillate oil darker.

Therefore, when crude oil is produced with hydrocarbon or ethanol extraction, it is critical to remove as much of the remaining solvent as possible. Any solvent materials that are left behind can cause a discolored, contaminated or diluted product.

Flash evaporation could be harmful to your health

The other problem with a dark extract is that the dark color is a telltale sign that your distillate may have chemical contaminants in it. With the widespread use of denatured ethanol and hexane as an extraction solvent, any splattering or flash evaporation of those solvents at the head of the distillation column can contaminate the distillate with chemical contaminants. These contaminants do not carry any color, but do carry unknown health risks.

So, before the process of distillation begins, the distillation pre-process needs to be spot-on or the distillate could be contaminated and result in potentially harmful side effects for the user. The remedy is clear in this case: make sure all ethanol and solvents are removed prior to distillation. To do this, you will need to cook the heck out of the extract.

Splattering in wiped film equipment caused by incomplete decarboxylation

Decarboxylation in the context of hemp processing is the process of converting the acidic form of CBD to its neutral form according to figure 2.

Decarboxylation

As the scheme shows, heating an oil containing CBDA, the acidic form of CBD, will evolve CO2 and convert the acid form into a neutral molecule. If a significant amount of the bulk oil is evolving CO2 gas in the thin film, it could produce splatters along the column.

The kinetics of evolving CO2 is much slower than boiling an entrained fluid therefore bubbles due to decarboxylation are expected to be further down the wiped film column compared to rapid evaporation of a low boiling solvent that is expected to occur at the top of the column.

There may also be other compounds in the oil such as terpenes that may react at high temperatures under vacuum to release water or other gasses. Either way, the remedy is obvious: Decarboxylate prior to distillation.

Wiped film vs short path

One of the reasons wiped film evaporation is so popular compared to short path distillation is that wiped film evaporators provide a wiper that continuously mixes the hot fluid to be distilled. The constant mixing action effectively reduces the resistance to mass transfer that is typical for highly viscous fluids thus making wiped film distillation a much faster process than short path distillation.

Since distillation is much faster, wiped film equipment is generally considered a more gentle way to distill an oil. The time that the oil experiences exposure to high heat is short, so many reactive compounds do not have time to react and degrade the residue or distillate. Typical residence time in wiped film equipment is on the order of minutes.

In contrast, a short path uses a round bottom flask and a heating mantle. The time that the oil spends heating in that flask can last well over an hour thus providing both the energy and the time for side reactions and degradation to occur.

Splashing in wiped film equipment caused by the wiper blade

The rotating wiper blade can also potentially be a cause of splashes if the blade is out of alignment or installed improperly. Misalignment of a wiper causes an uneven film and can also cause build up and pools of oil that tend to splash in random directions when the oil drips. If the wiper blade design does not incorporate “fingers” and is solid, oil is more likely to build up on one side of the blade. This may cause drips which can lead to splashing. Thus, wiper design is also key to a well functioning wiped film evaporator.

A wiper blade can also cause problems if the angular velocity is too high. Keeping the RPM at reasonable value is critical to optimizing throughput, color, and clarity of the oil. One thing to note is that many manufacturers including clearSTILL offer wiper designs that incorporate shields to prevent splatter or splashes. This is a good idea when incorporated with the preventative measures discussed above.

A helpful tip for troubleshooting wipers

One way to troubleshoot the wipers is to use a fluorescent dye in some test oil that mimics the viscosity of hot winterized CBD oil. Feeding the still with this oil at your method flow rate and RPM will tell you if the unit is unintentionally splashing. All you need to do is run the unit under method conditions, disassemble and inspect the finger under UV light. Any splashes will show up on the “cold finger” as a streak of fluorescent oil.

Splashing caused by a high mass flow rate

High throughput in your short path distillation kit, falling film evaporator, or thin film evaporator is essential to make the most money per unit time. However, there is an optimum amount of material throughput that will directly impact the quality and clarity of the distillate produced. Throughput is mainly controlled by inlet flow rate. As we will see below, flow rate can also impact color and clarity.

At a low input flow rate and given RPM, the wiper blades are not overwhelmed with material and will create a uniform thin film to be evaporated. This condition is good for eliminating splashes and will also give a great color and clarity to the oil. The trade off is poor throughput.

As the flow rate increases, throughput improves. However, while holding the same RPM, eventually the wipers will be overwhelmed and drips and splatters occur. This will compromise color and clarity.

Wiper blade RPM can be increased to accommodate increased mass flow rate but only up to the point that splashes start to occur. No matter what, figuring out the precise balance of operating conditions will create a clearer, more potent distillate by the end of the process.

Quality of input hemp oil

A pure CBD or THC distillate is reliant on more than just the molecular distillation process. A quality product is only as good as its source material. This means starting with marijuana or hemp plant material high in cannabinoids and terpenes is essential. One key issue we have found related to color is that the more hemp seed, stalk and fan leaf in the biomass, the more likely it is that the distillate will be dark.

Number of passes

Temperature and vacuum pressure must be dialed in to near perfection for any thin film distillation. The thicker the film, the harder it is to remove desired volatile CBD or THC cannabinoids from residual byproducts like terpenes and remaining solvents. Most short path distillation equipment requires two separate passes. Wiped film evaporation is similar. Typically, the first pass is to remove byproducts like ethanol that has a boiling point of 78.2℃. Without proper vacuum distillation to lower that boiling point, a larger quantity of ethanol will remain and create an impure and discolored product after the second distillation pass.

However, it is possible to compensate for that discoloration by varying temperature, or vacuum pressure. Because an increased vacuum pressure creates an atmosphere that lowers the boiling point of materials, temperatures can be slightly reduced if that pressure is too high. The opposite is also true. If too high of a temperature is causing a dark distillate, it is possible to raise vacuum pressure to compensate. Either way, the balancing act is critical to achieve the desired clarity.

If trial and error continues to show a final product that is a dark, undesirable color, it may help to re-run the distillate one more time specifically for the purpose of clarity. Temperatures and vacuum pressures may be altered slightly compared to the first or second pass to identify exactly what the purified product needs to become clearer.

How clearSTILL compares to alternatives

extraktLAB’s clearSTILL has distillate clarity down to the highest level of precision. Where standard cannabis distillation equipment requires multiple passes, each in a separate cycle, clearSTILL is capable of two passes in a single contained cycle. This means that contamination risk from transfers between passes are eliminated and further increases the chance for high clarity and potency.

clearstill

Not only will the dual-stage system of clearSTILL increase the likelihood of a quality product with increased clarity, it is capable of producing double the volume of single stage systems at 4-6 L/hour and drastically decreasing labor costs.

Because the clearSTILL is a wiped film evaporator, it is designed to handle fluids of a higher viscosity. This becomes important in the case that a “re-run” of a distilled product is needed for the sake of increasing clarity. Where traditional short-path equipment might struggle, the clearSTILL will easily handle the product as viscosity increases.

The clearSTILL also uses a unique vacuum pump system that is oil free. Other vacuum pump systems typically use an oil ring that creates a proper seal. While this may create a proper vacuum seal, this makes it possible for volatile components that don’t condense to follow the flow of vapor and contaminate the lubrication needed to operate. This leads to necessary disassembly, production downtime and risk for product contamination.

Like all extrakLAB equipment, the clearSTILL is GMP compliant with maintenance tracking, continuous containment between stages, and certified wetted materials that support global market requirements. It’s the “clear” choice when it comes to cannabis distillation.

Clarity is typically indicative of quality in the hemp and cannabis concentrate market. This means that if you end up with a dark, or less translucent end product, you likely need to figure out your clarity for the sake of customer satisfaction. Lucky for you, the solution may not be as hard as you would think.
