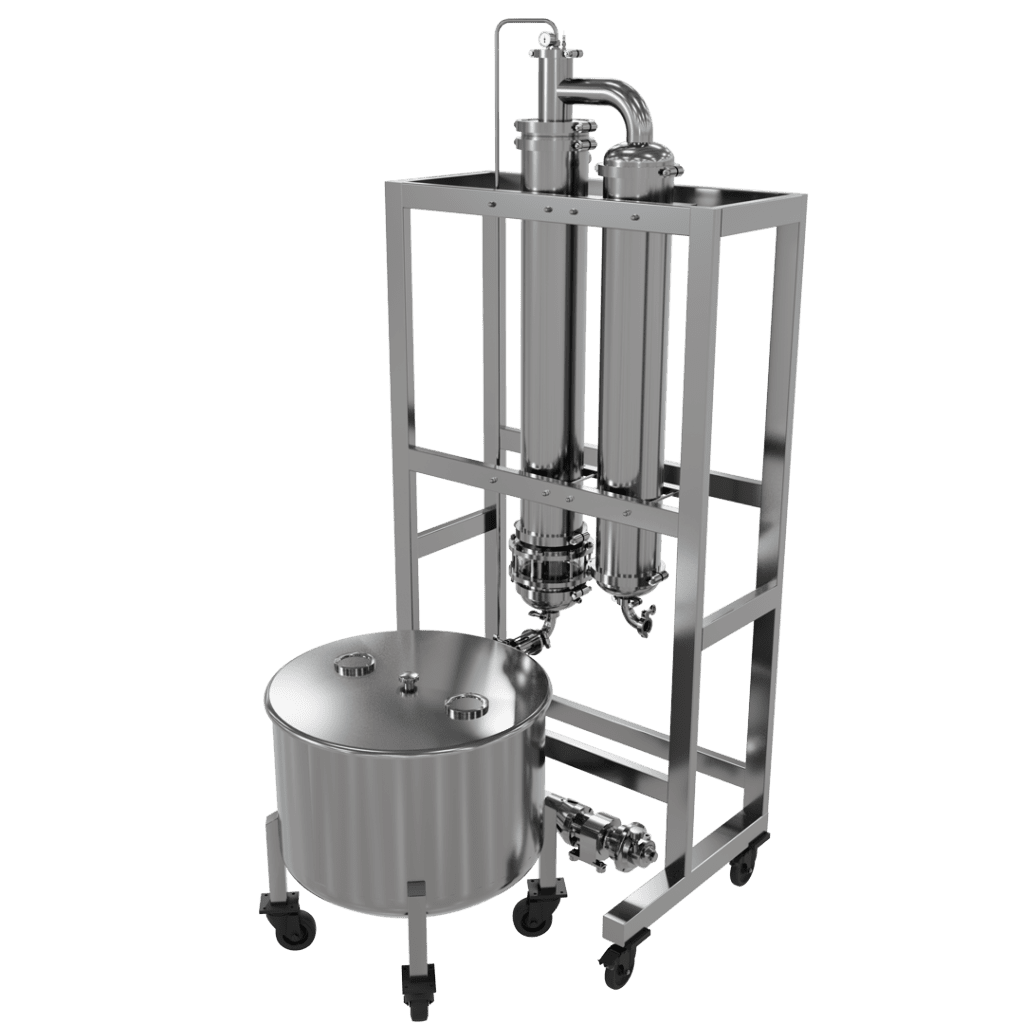

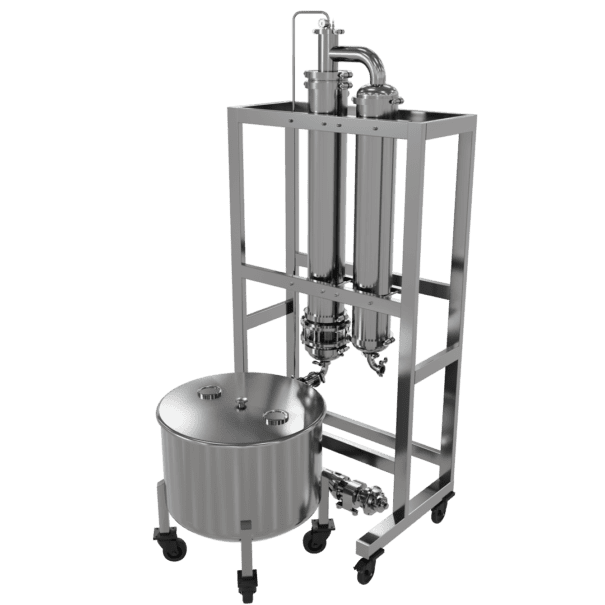

fracTron-100

Part Number: #10-0127 (208-230V) | #10-0148 (380V)

The fracTron-100 is a single-stage batch falling film distillation unit for rapid solvent recovery & removal of volatiles from liquid mixtures. It uses an air-driven pump to support a recycling capacity of up to 60 gallons in a continuous process batch.

Talk to an Expert | Request a Quote

DOWNLOAD fractron-100 BROCHURE

Features and Benefits
Specifications
More Information

fracTron-100 FEATURES & BENEFITS

Up to 20 gallons/hour Capacity
Single-Stage Batch
Falling Film Separation
Air Driven Pump
C1D2 Compliant
UL Listed Components

PROCESSING POWER:
Complete solvent removal eliminates secondary processing; Perfect starter machine

GMP COMPLIANCE (optional):
Wetted materials: 316SS, PTFE, Silicone Rubber

PROCESSING CONTROL:
Manual system with manual control; Single stainless falling film column with independent temperature control and evaporator jacket

General Specifications

Dimensions (inches)	L48″ x W57″ x H109″
Sound Pressure (db)	<60

REQUIRED, SOLD SEPARATELY:
Chiller Kit, #10-1112 (208-230V) | #10-1113 (380V); Heater Kit, #10-1108 (208-230V) | #10-1114 (380V); Cleaning Kit, #10-1099 (208-230V) | #10-11003 (380V); Critical Spares Kit, #10-1101 (208-230V/380V); and Startup Kit, #10-1102 (208-230V/380V)

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

The fracTron-100 is a manual single-stage falling film evaporator that is based on the technology of our fracTron-1000. The machine contains a single stainless falling film column with independent temperature control and an evaporator jacket. It is designed to provide an avenue for those seeking superior solvent removal equipment at the ground level. With the fracTron-100, you can expect outputs of 20gal per hour of refined extract.
