E2isolate

Part Number: #10-0186 (208-230V) | #10-0187 (380V)

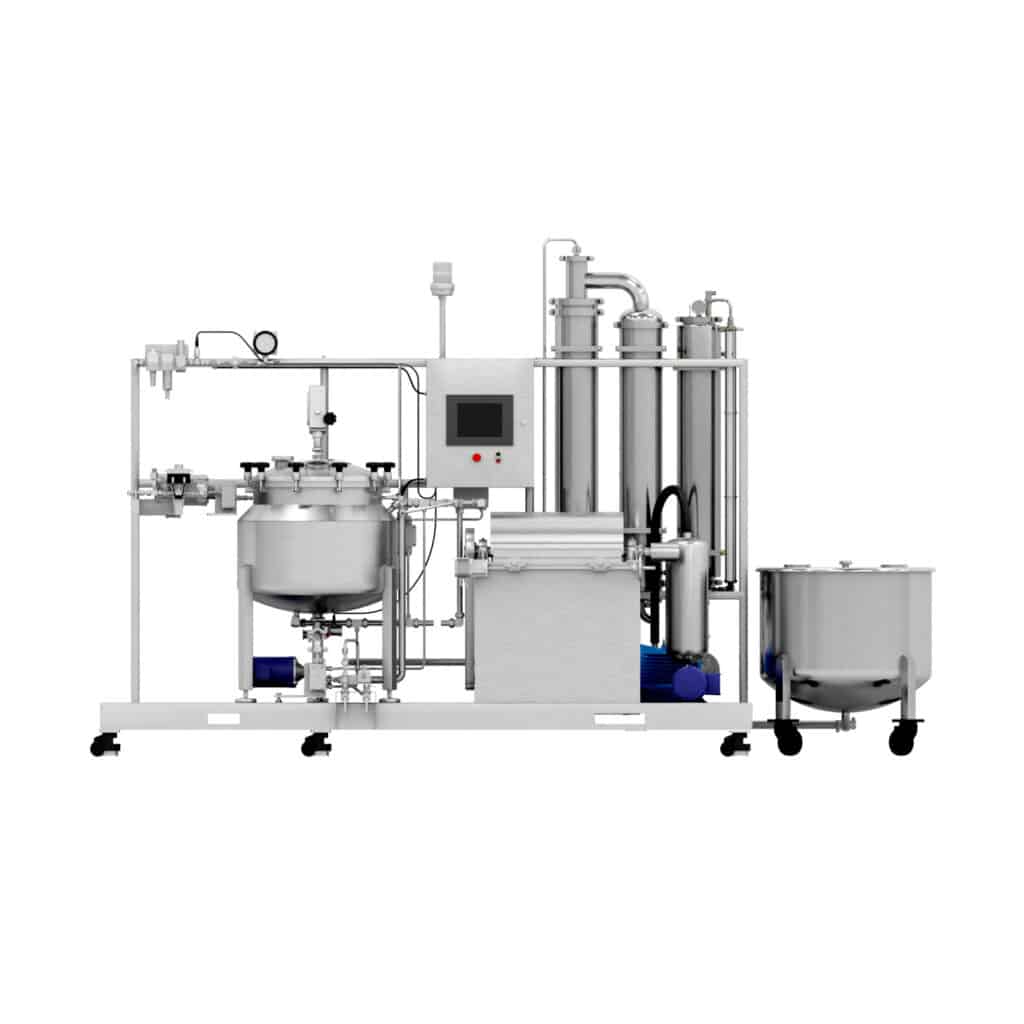

The E2isolate crystallization skid provides an automated crystallization of extracts. The system is intended to interface with the clearSTILL-400 distillation system via an interface vessel which will introduce distilled extract into the E2isolate apparatus. The E2isolate skid features an automated mixing and dilution tank that is insulated and chilled with a recirculating glycol chiller. The filtration system features a filtration drum with single stage falling film for solvent recovery.

Talk to an Expert | Request a Quote
DOWNLOAD e2isolate BROCHURE

E2isolate FEATURES & BENEFITS

  • Interfaces with clearSTILL-400
  • Crystallization of Target Compounds from Distillates
  • Vacuum Filtration
  • Integrated Falling Film Solvent Recovery
  • Oil Free Vacuum Pump & Solvent Trap
  • CIP Connections

GMP COMPLIANCE:
Intended for use with distilled extracts
Process: Dissolution, mixing, precipitation, filtration, solvent recovery
Containment: Contained process
Lubricants: None in direct contact. No contact with process fluids
PLC GAMP5: Category 3
Materials Traceability & Manufacturers’ DOC for Contact Materials
Seals: PTFE, Vitron

SYSTEMS CLASSIFICATIONS:
Dewaxing Skid:
Components: Vessels, pumps, vacuum pumps, falling film evaporator, filter
Type: Direct Impact
Documentation: GEP Startup, Commissioning, Qualification

Off Skid Components:
Chiller 1: Process Chilling
Chiller 2: Condenser
Heater 1: Evaporation
Documentation: GEP Startup, Commissioning, Qualification

CLEANABILITY:
Surface Finishes: 0.8 µm or better on all contact surfaces
Welds: Ground, argon purged
Fittings: Sanitary
CIP: Sprayball, low point fluid exit
CIP: External

General Specifications

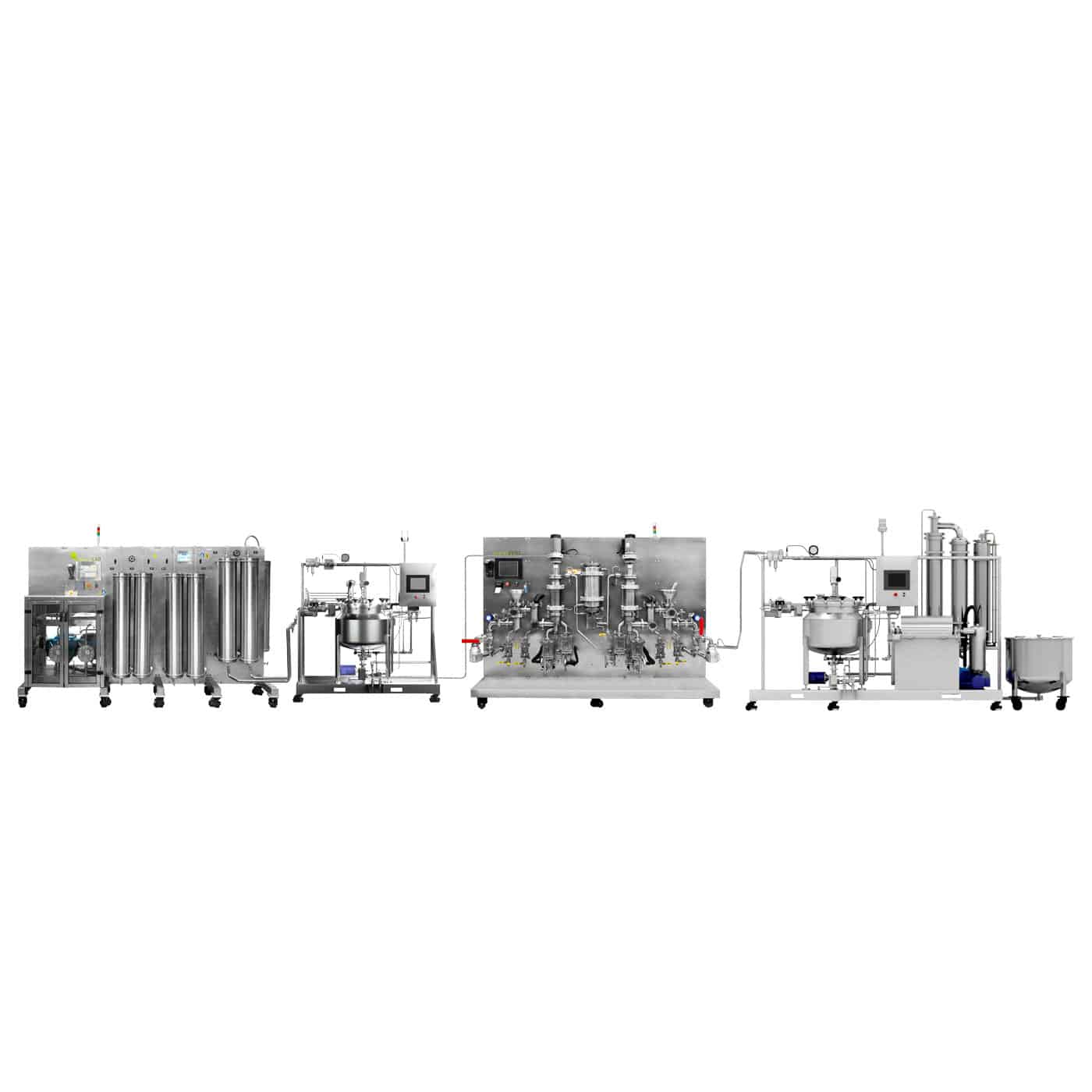

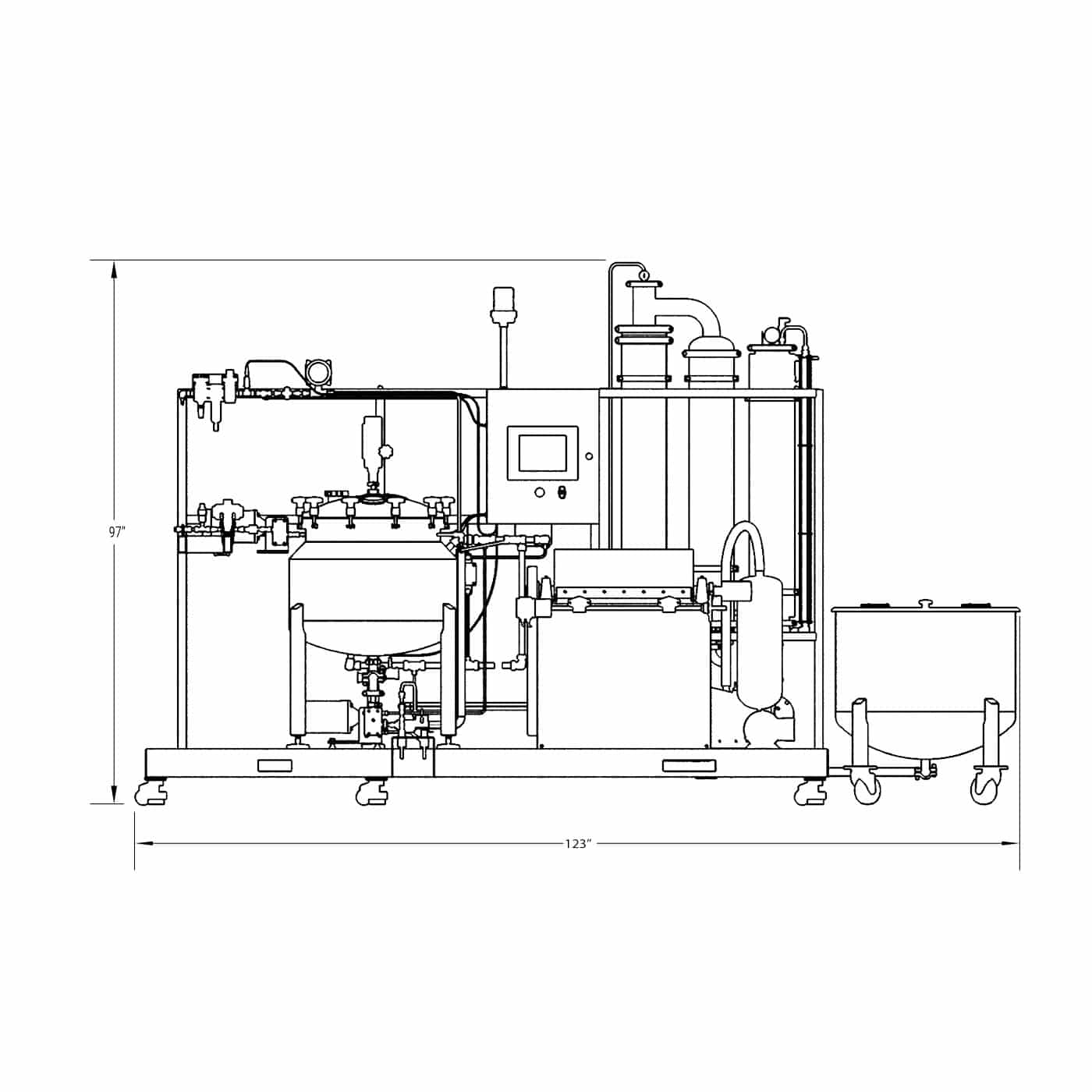

Dimensions (inches)L36″ x W123″ x H97″
Unit Weight (pounds)900
Footprint (sq ft)25
Heat Load (kW)1.1
MobilityLeveling Casters

CERTIFICATIONS:
ETL, UL 508A Stamped; CE; PED; NA

REQUIRED, SOLD SEPARATELY:
e-140 #10-0063 (240V) | #10-0099 (380V) OR
e-180 #10-0010 (240V) | #10-0147 (380V)
E2Di #10-0174 (240) | $10-0175 (380V)
clearSTILL-400 #10-0081 (240V) | #10-0099 (380V)
Interface Vessel #10-0199 (240V) | #10-0200 (380V)

RECOMMENDED, SOLD SEPARATELY:
Heater/Chiller, 1-zone, 6 kW/10.2 kW #80-4423 (240V) | #80-4424 (380V)
Chiller 2: 5hp, 35.2A #80-4018 (240V) | #40-4097 (380V)
Heater 2: 36kW, Recirculating Oil #80-4096 (240/380V)
CIP Unit #10-0197 (240V) | #10-0198 (380V)

ALSO AVAILABLE, SOLD SEPARATELY:
Factory Acceptance Test (FAT); Site Acceptance Test (SAT); Design Qualification (DQ); Installation Qualification (IQ); Operational Qualification (OQ); GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.
