E2W

Part Number: #10-0195 (208-230V) | #10-0196 (380V)

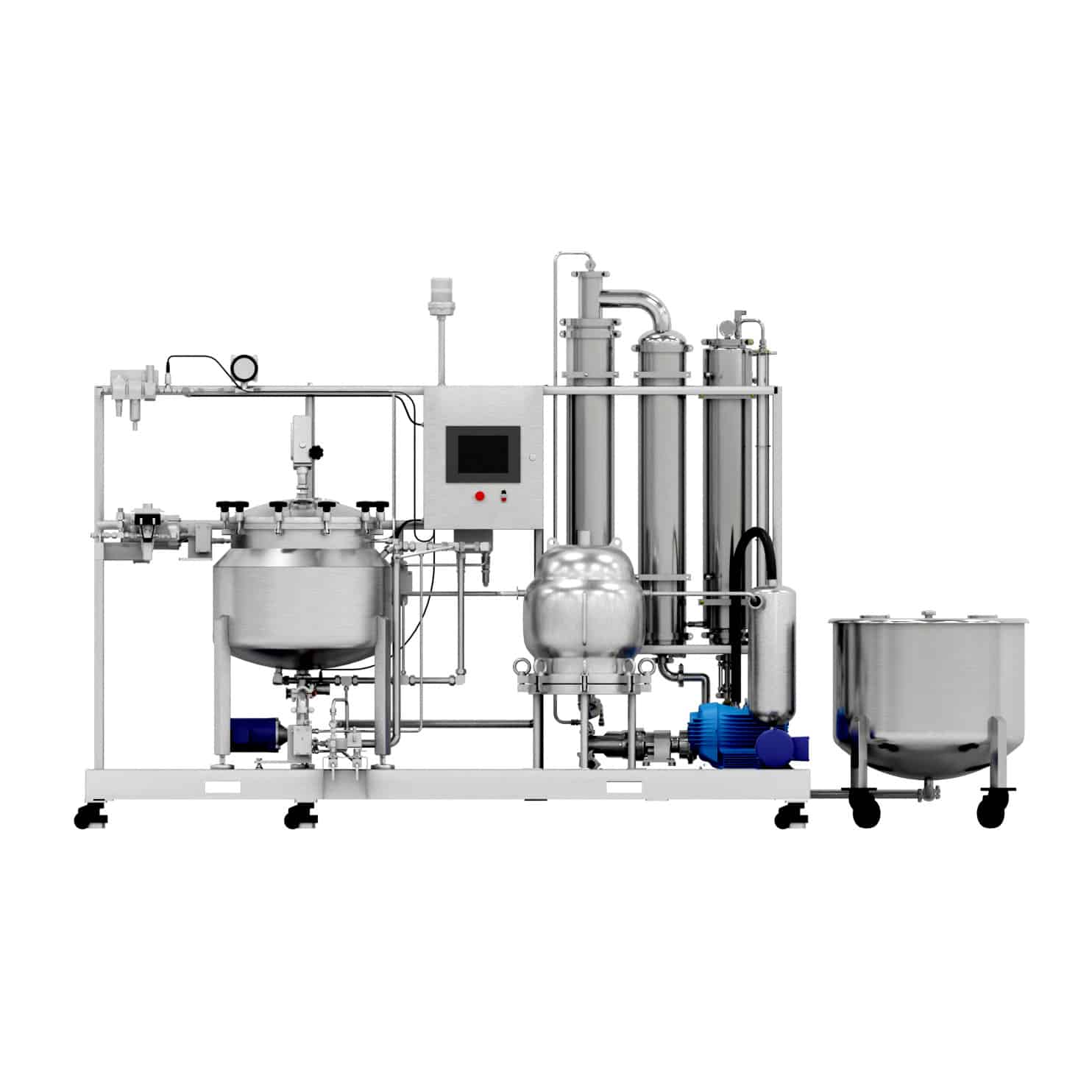

The E2W dewaxing skid provides an automated way to dewax extracts. The system is intended to interface with
the E2Di system which will introduce conditioned extract into the E2W apparatus. The E2W skid features an automated ethanol mixing and dilution tank that is insulated and chilled with a recirculating glycol chiller. The filtration system features a two stage filtration housing with single stage falling film solvent recovery.

Talk to an Expert | Request a Quote

DOWNLOAD e2w BROCHURE

Features and Benefits
Specifications
More Information

E2W FEATURES & BENEFITS

Interfaces with E2Di Skid
Automation of Batch Dewaxing of Extracts
Two Stage Vacuum Filtration
Integrated Falling Film Solvent Recovery
Optional Solid Phase Extraction Module
CIP Connections

GMP COMPLIANCE:
Intended for use with ethanol and botanical extracts
Process: Dissolution, mixing, precipitation, filtration, solvent recovery
Containment: Contained process
Lubricants: None in direct contact. No contact with process fluids
PLC GAMP5: Category 3
Materials Traceability & Manufacturers’ DOC for Contact Materials
Elastomeric Seals: PTFE, FEP, PEEK

SYSTEMS CLASSIFICATIONS:
Dewaxing Skid:
Components: Vessels, pumps, vacuum pumps, falling film evaporator, filter
Type: Direct Impact
Documentation: GEP Startup, Commissioning, Qualification

Off Skid Components:
Chiller 1
Chiller 2
Heater 1
Documentation: GEP Startup, Commissioning, Qualification

CLEANABILITY:
Surface Finishes: 0.8 µm or better on all contact surfaces
Welds: Ground, argon purged
Fittings: Sanitary
CIP: Sprayball, low point fluid exit
CIP: External

General Specifications

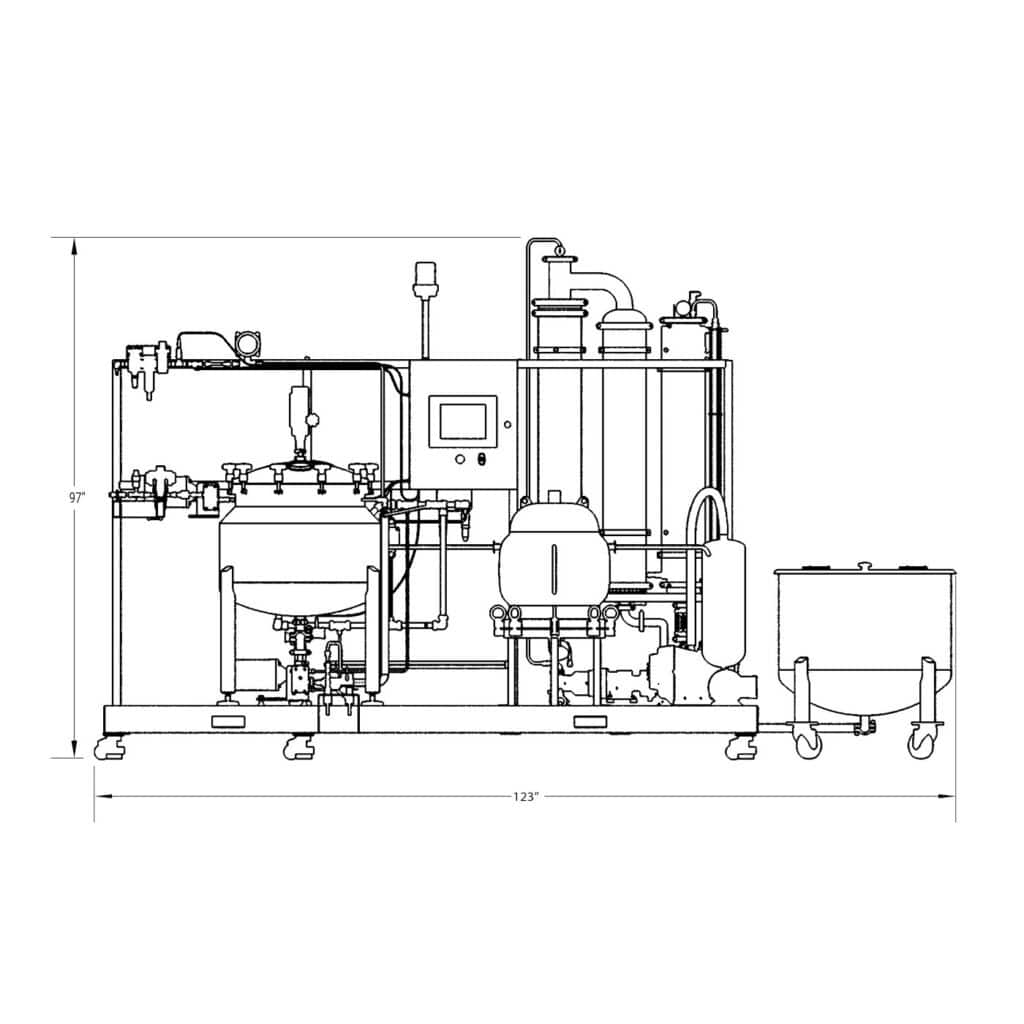

Dimensions (inches)	L36″ x W123″ x H97″
Unit Weight (pounds)	882
Footprint (sq ft)	25
Heat Load (kW)	0.9
Mobility	Leveling Casters

CERTIFICATIONS:
ETL, UL 508A Stamped; CE; PED; NA

REQUIRED, SOLD SEPARATELY:
e-140 #10-0063 (240V) | #10-0099 (380V) OR
e-180 #10-0010 (240V) | #10-0147 (380V)
E2Di #10-0174 (240) | $10-0175 (380V)
Interface Vessel #10-0199 (240V) | #10-0200 (380V)

RECOMMENDED, SOLD SEPARATELY:
Heater/Chiller, 1-zone, 6 kW/10.2 kW #80-4423 (240V) | #80-4424 (380V)
Chiller 2: 5hp, 35.2A #80-4018 (240V) | #40-4097 (380V)
Heater 2: 36kW, Recirculating Oil #80-4096 (240/380V)
CIP Unit #10-0197 (240V) | #10-0198 (380V)

ALSO AVAILABLE, SOLD SEPARATELY:
Factory Acceptance Test (FAT); Site Acceptance Test (SAT); Design Qualification (DQ); Installation Qualification (IQ); Operational Qualification (OQ); GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.
