clearSTILL-200

Part Number: #10-0144 (208-230V) | #10-0132 (380V)

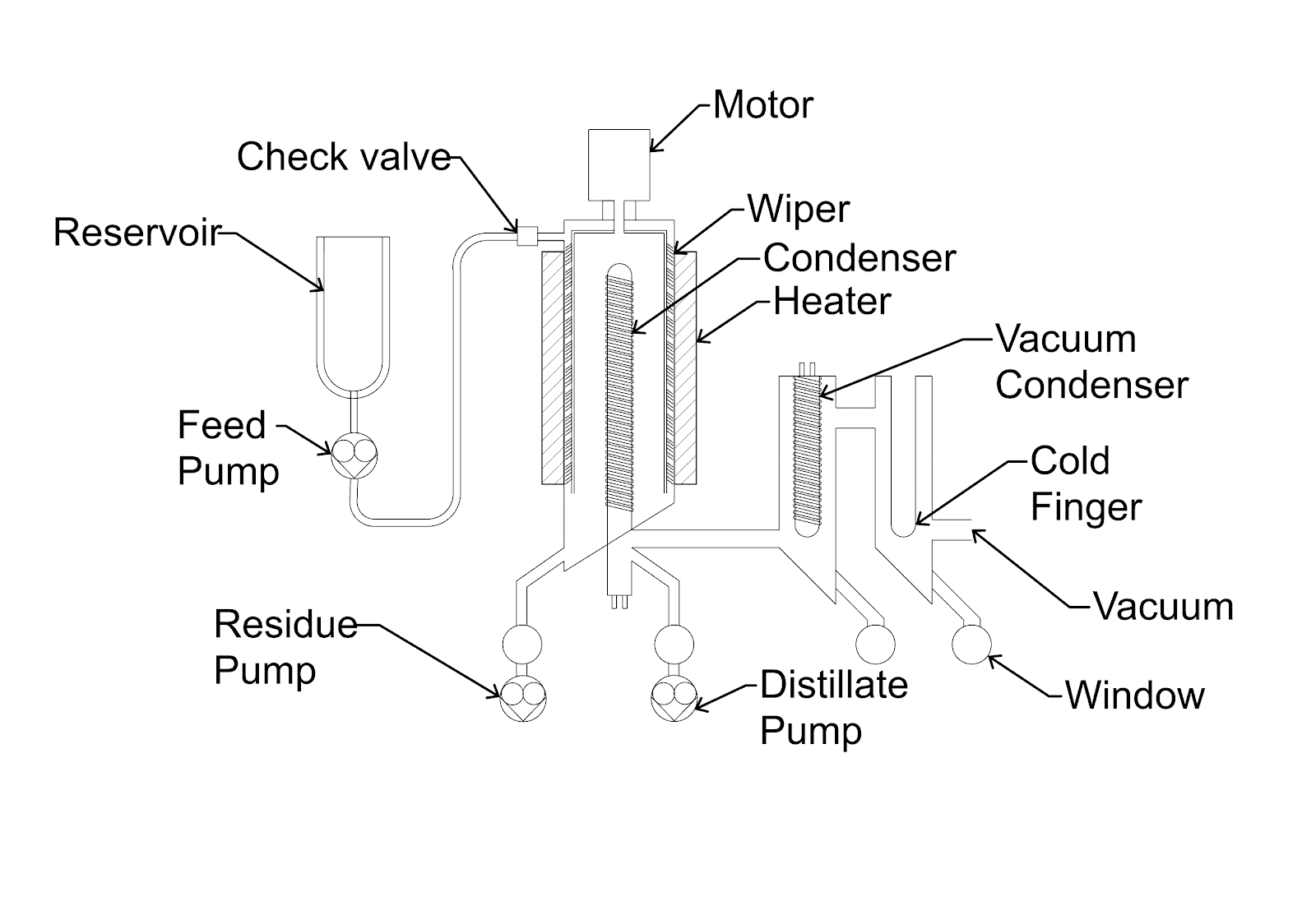

The clearSTILL 200 is a single-stage wiped film distillation machine designed to refine and clarify viscous oils. Featuring a single evaporator, a substantial jacketed reservoir, a cold finger, a condenser, a roughing pump, and a turbo vacuum capable of meeting a wide range of separation goals.

Talk to an Expert | Request a Quote

DOWNLOAD CLEARSTILL-200 BROCHURE

Features and Benefits
Specifications
More Information

clearSTILL-200 FEATURES & BENEFITS

Throughput capacity of 2-3L/hour
Single-Stage Distillation
Jacketed Piping
High-Temperature Maintenance
Continuous Oil Removal
Vacuum Conditioning System is Capable of Deep Vacuum

PROCESSING CONTROL:
Ultrasonic, laser, mass, and vacuum sensors enable superior process control capability

GMP COMPLIANCE:
Certified wetted materials; Easy clean-in-place capabilities

PROCESSING POWER:
Single-stage wiped film distillation; Stainless still with independent temperature control for evaporator jacket, condensing finger, roughing pumps, and turbo pumps; Oil-free pumps eliminate oil changes and oil contamination; Integrated cold-finger cleaner; Roughing vacuum pumps

General Specifications

Dimensions (inches)	L70″ x W42″ x H71″
Unit Weight (pounds)	1200
Sound Pressure (db)	<60

CERTIFICATIONS:
UL 508A; CSA, cUL, CE

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

The equipment may be used for low boiler stripping operations and oil refinement and purification. The equipment supports a throughput capacity of 2-3L per hour and is manually operated. The equipment can be ordered at the time of production with a GMP-compliant documentation package that will aid in GMP commissioning & qualification.
