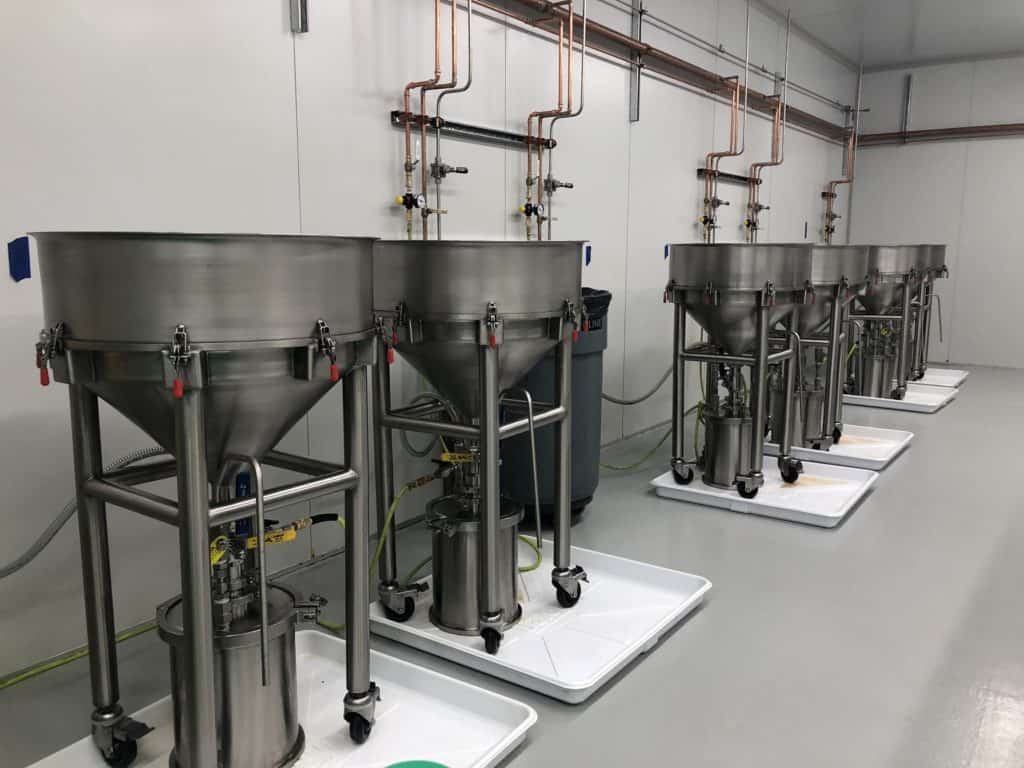

DrainDroyds in Winterize Wax Filtration Room

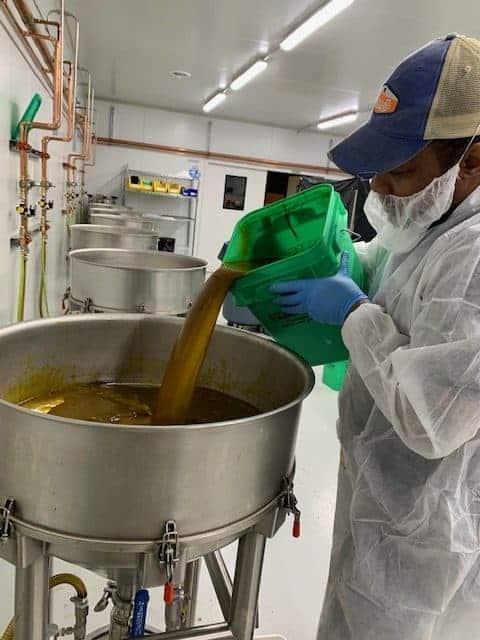

worker pouring winterized CBD oil into DrainDroyd

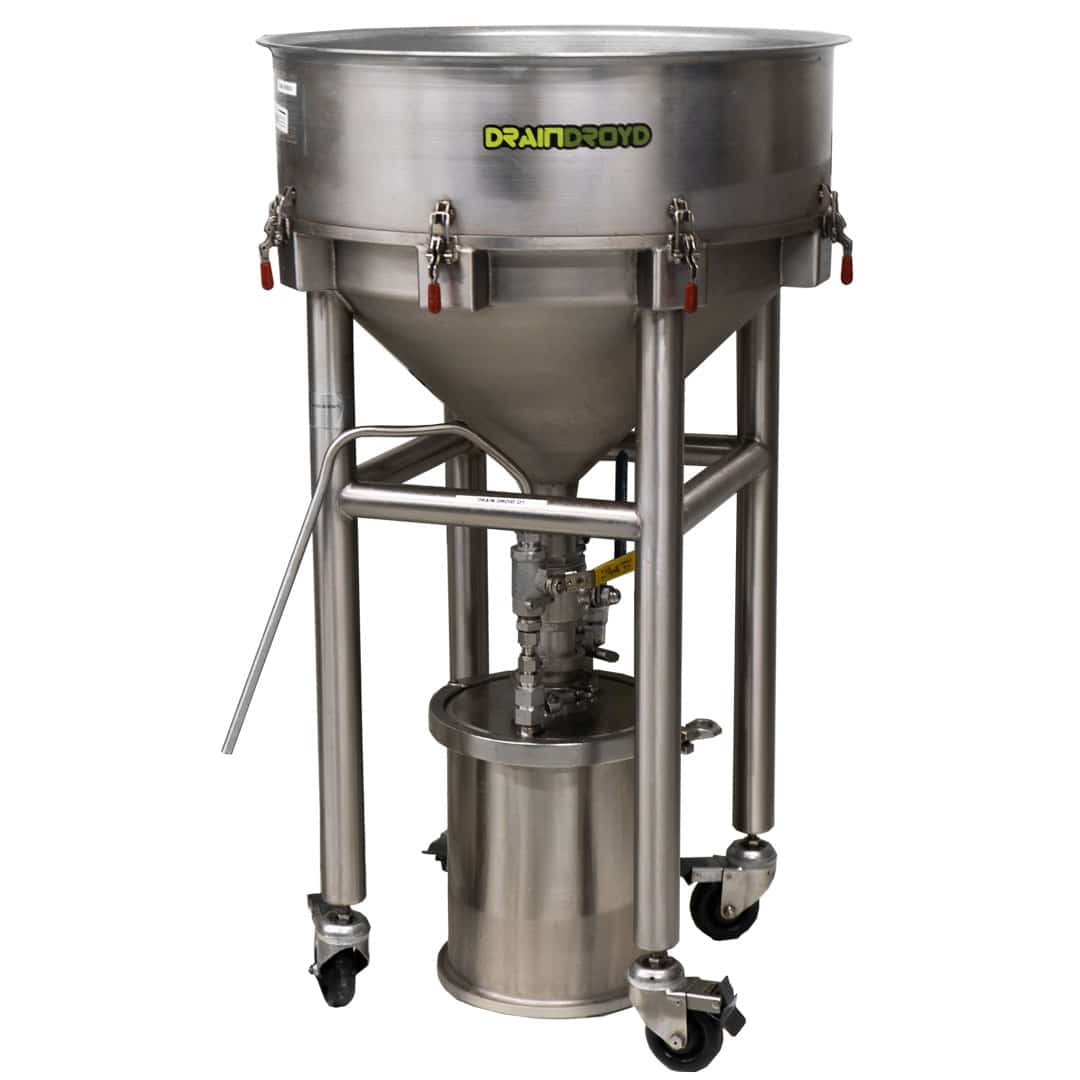

DRAINDROYD

Part Number Options:
Standard Filter Top #70-3010 (208-230/380V)

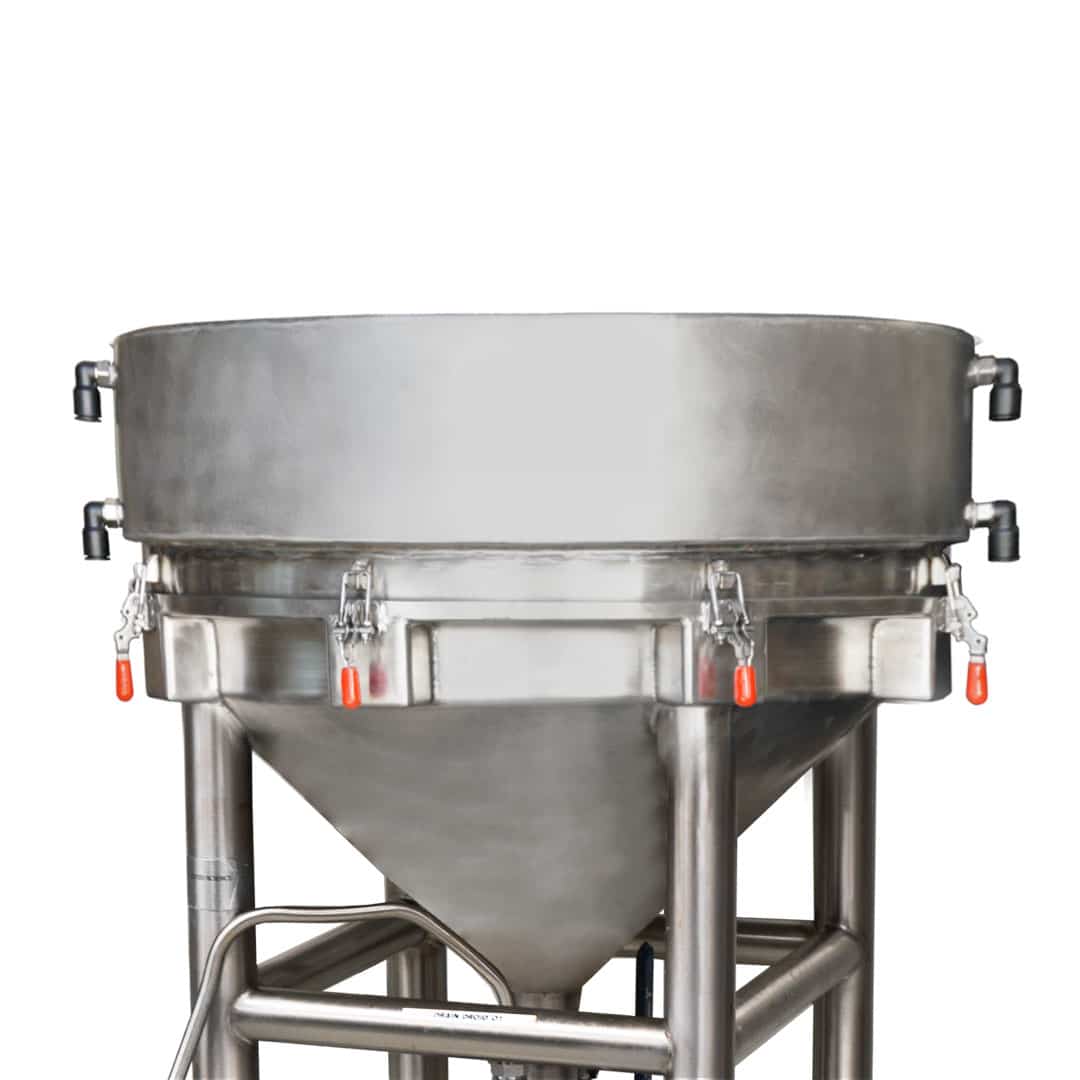

Jacketed Filter Top: #10-0170 (208-230/380V)

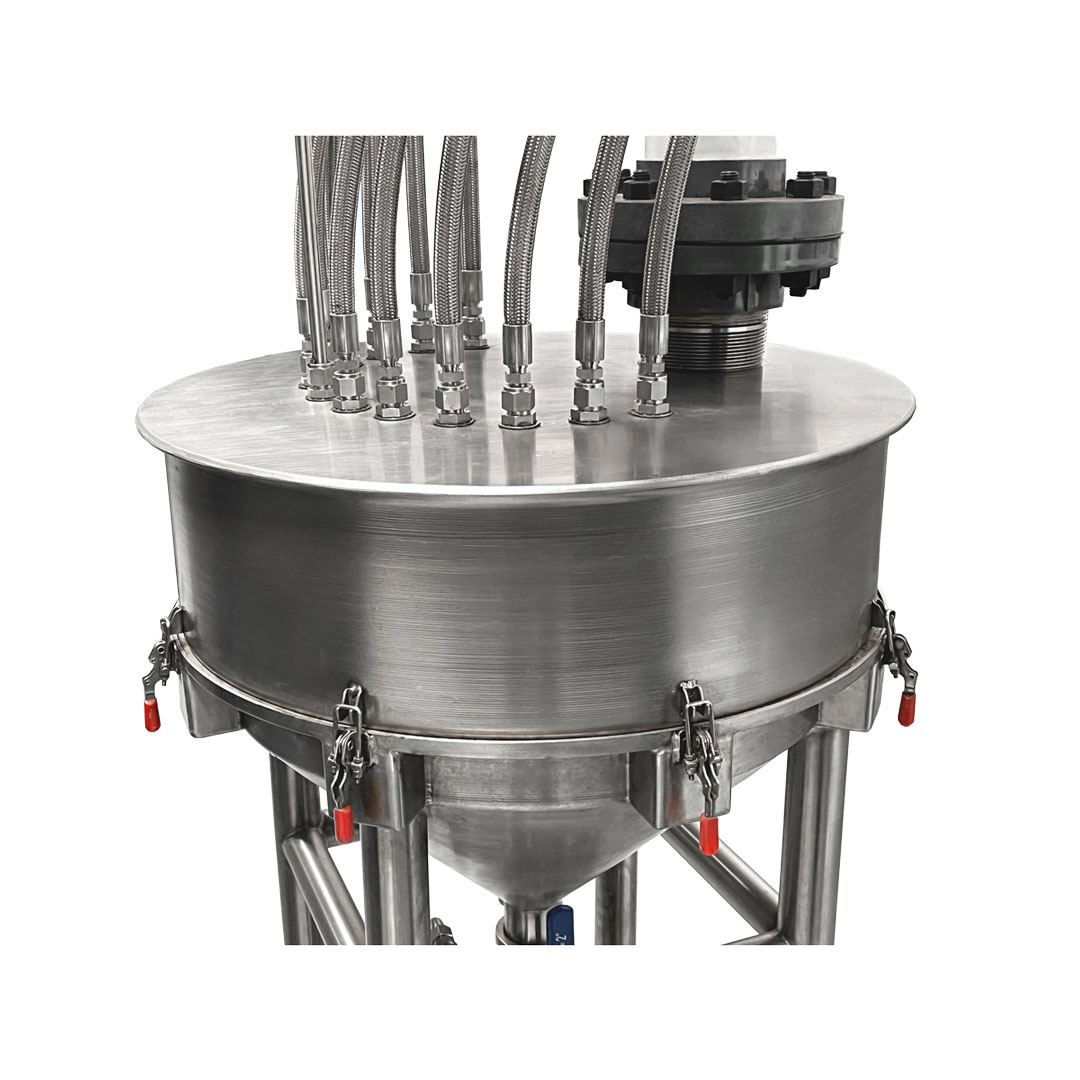

Condenser Top: #10-0169 (208-230/380V)

DRAINDROYD with choice of top includes the stand, containment vessel with expeller nozzle, and vacuum pump with hoses.

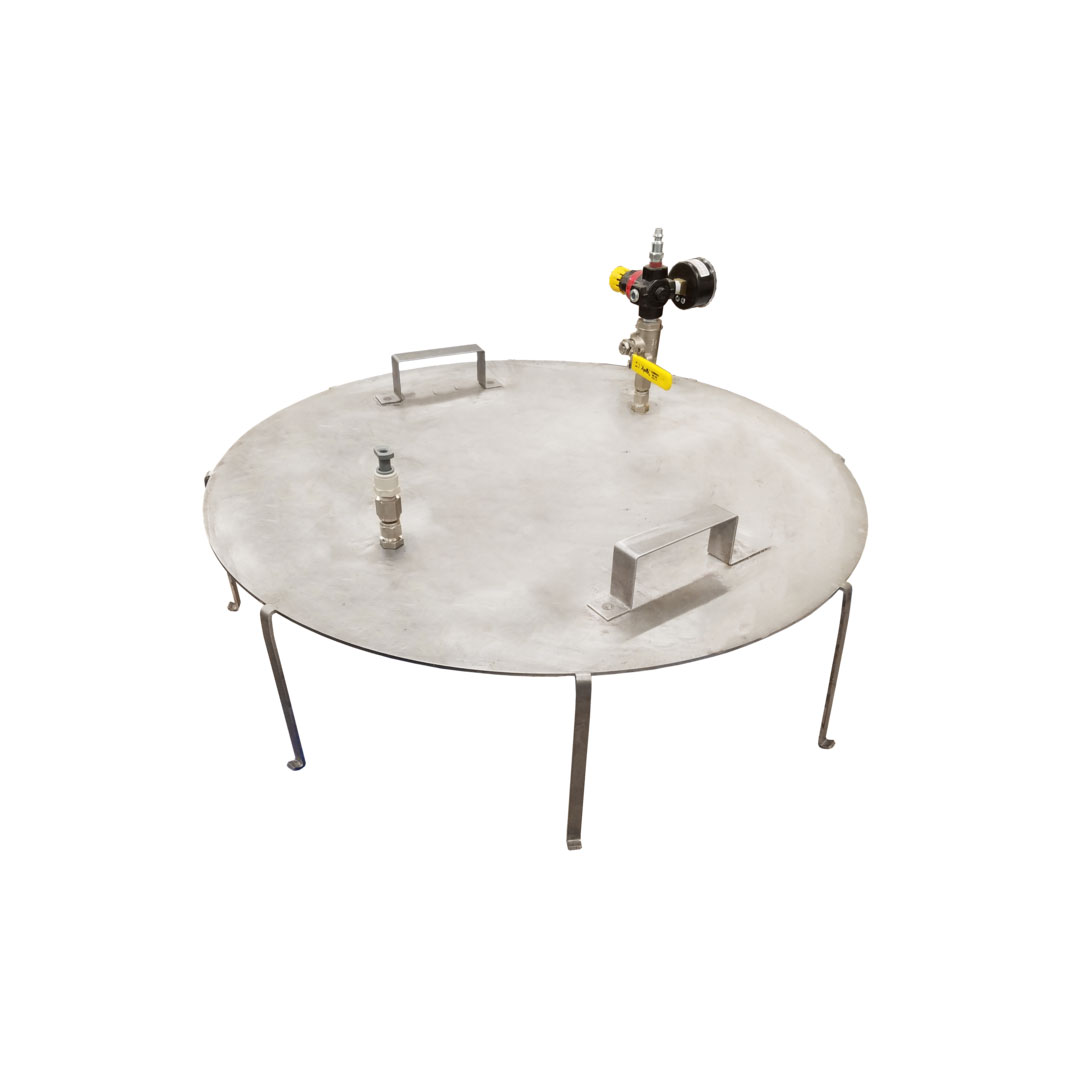

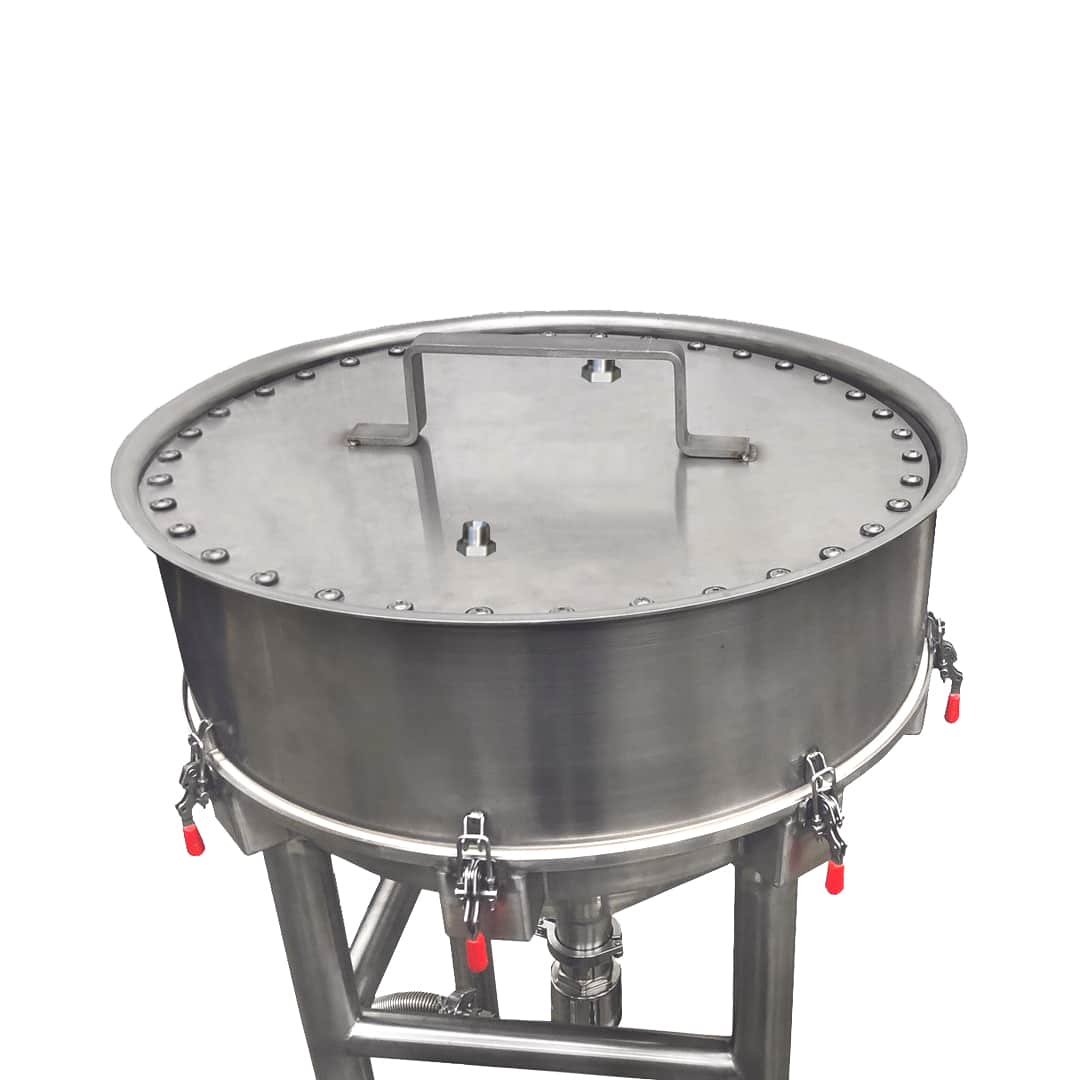

Optional Lids Available: French Press Lid: #70-3020; Octo Lid #10-1051

Required, Sold Separately: Filter Paper/Bags

Talk to an Expert | Request a Quote

DOWNLOAD draindroyd BROCHURE

Features and Benefits
Specifications
More Information

DRAINDROYD FEATURES & BENEFITS

High Throughput Filtration
Includes Containment Vessel for Product Isolation
GMP Compliant Stainless Steel Construction
Superb Cleanbility
Multiple Accessories to Expand Methods

EXTENDED FEATURES:
316 stainless steel construction; Vacuum pump acceleration filtration; Collection vessel for product isolation and GMP compliance; Multiple accessories to expand methods and techniques; Integrated floor stand

ACCESSORIES:
Octolid or french press lid for standard filter top; Connect to either a 50Hz or 60Hz oil-less vacuum pump; Use various size micron filter paper or filter bags

BENEFITS:
Fastest filtration method in the industry; Provides superb cleanability and sanitation between batches; Easy integration into existing processes; No broken glass or spillage; Optional top configurations: condenser or jacketed filter

General Specifications

Dimensions (inches)	L26″ x W26″ x H45″
Portability	Adjustable Height Casters
Weight (lbs)	130
Max Pressure (psi)	300
Wetted Materials	Buna-N, 316SS

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

DrainDroyd vacuum filtration equipment makes high-throughput wax removal from winterized ethanol solutions possible in less time. When you choose the DRAINDROYD, you eliminate frustrating restrictions such as many hours of labor with small scale Büchner funnels and glass breakage. Our innovative vacuum filtration equipment also reduces the number of steps in your overall filtrations process and leads to the production of higher quality hemp extract products.

The difference between the DRAINDROYD and traditional vacuum filtration systems is a superior filtration throughput with a wider range of capabilities. The DRAINDROYD vacuum filtration unit is a handy addition to the workflow of any hemp or cannabis oil manufacturing operations designed to not only filter solids like waxes from liquids, but also for removing large solids from small solids such as is required in isolate products or in solid phase extractions of any kind.
