MPCART

Part Number: #10-0131 (208-230V) | #10-0155 (380V)

The CO2Cage has a capacity of 1,600 lbs of liquid CO2. It provides a safe and convenient solution for constant pressure input levels needed for efficient extraction, and incorporates sixteen 100-pound liquid CO2
cylinders, DOT certified, attached to a single manifold.

Talk to an Expert | Request a Quote

DOWNLOAD mpcart BROCHURE

Features and Benefits
Specifications
More Information

MPCART FEATURES & BENEFITS

Mobile or Permanently Plumed Inline CO2 Pump Solution
20 lbs/min Fill Rate
4-20 mAmp Connectivity to CO2 Cage
Transports Liquid CO2 More Than 100 feet
Integrates with CO2 Cage
CO2 Cage Automatically Signals to Turn Pump On

General Specifications

Dimensions (inches)	L52″ x W24″ x H56″
Weight (lbs)	690
Control Type	PLC, Manual Switch
Cord Length (ft)	120
Feed Hose Connection (in)	1-1/2 F CGA
Feed Hose Length (ft)	5
Fill Hose Connection	CGA 320
Fill Hose Length (ft)	100
Inlet (psi)	300-350
Maximum (RPM)	1750
Output (HP)	5

Electrical Specifications

Electrical (A, V)	21-23, 208-230/380
Electrical Plug Type	HBL2621S
Frequency (Hz)	50/60
Phase	1

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

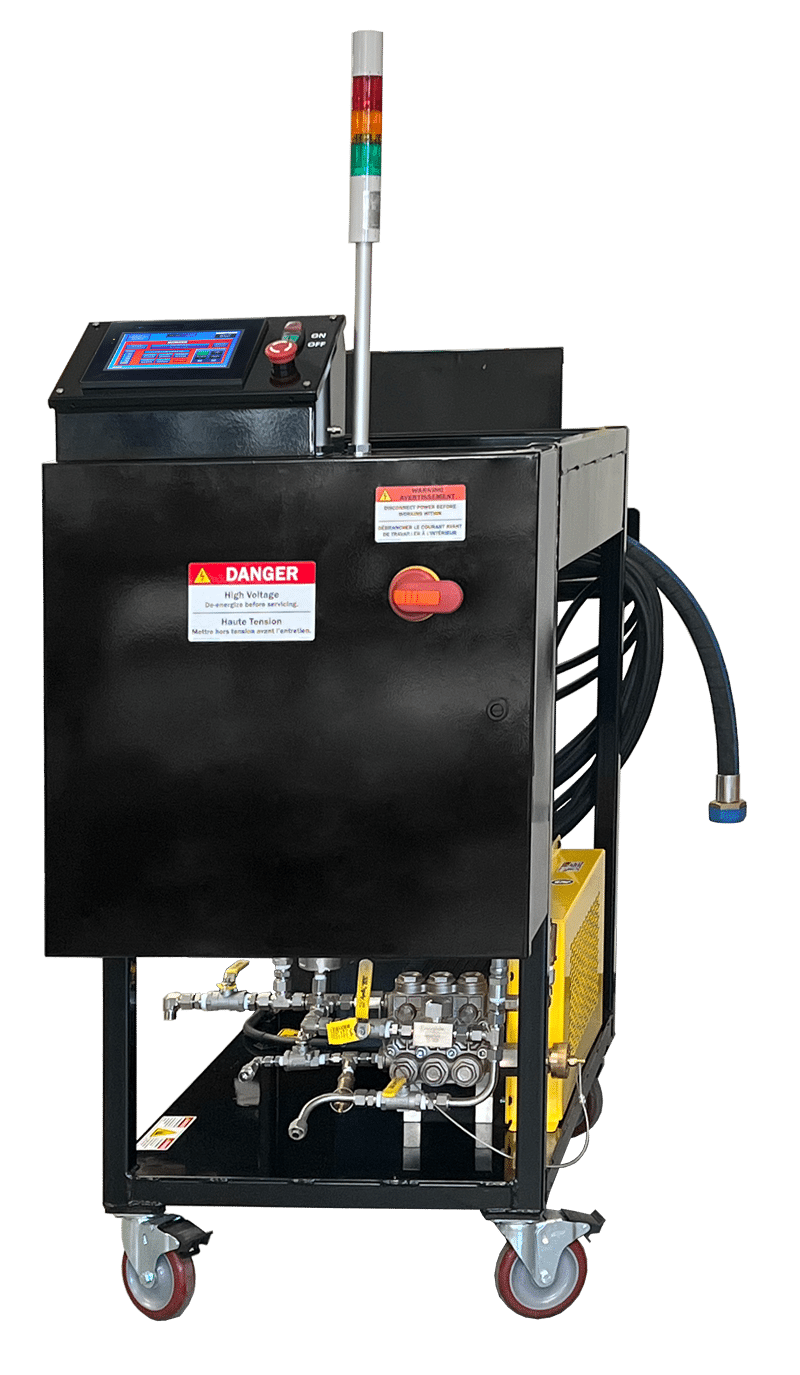

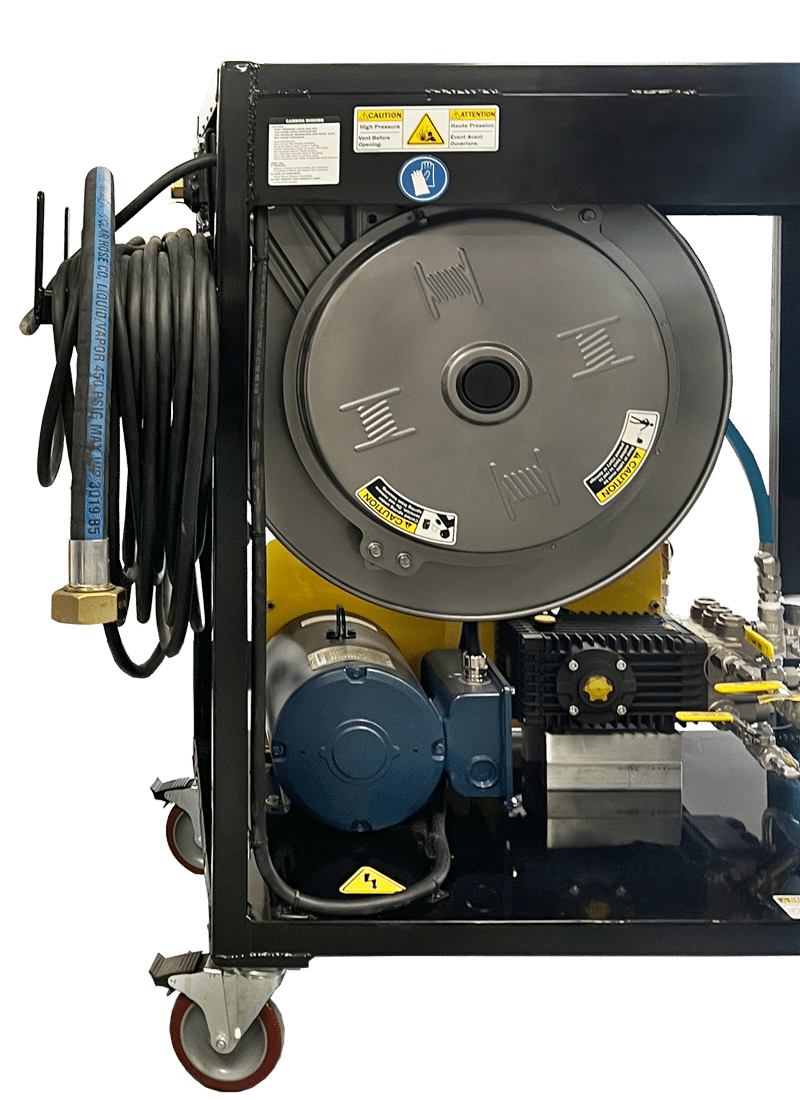

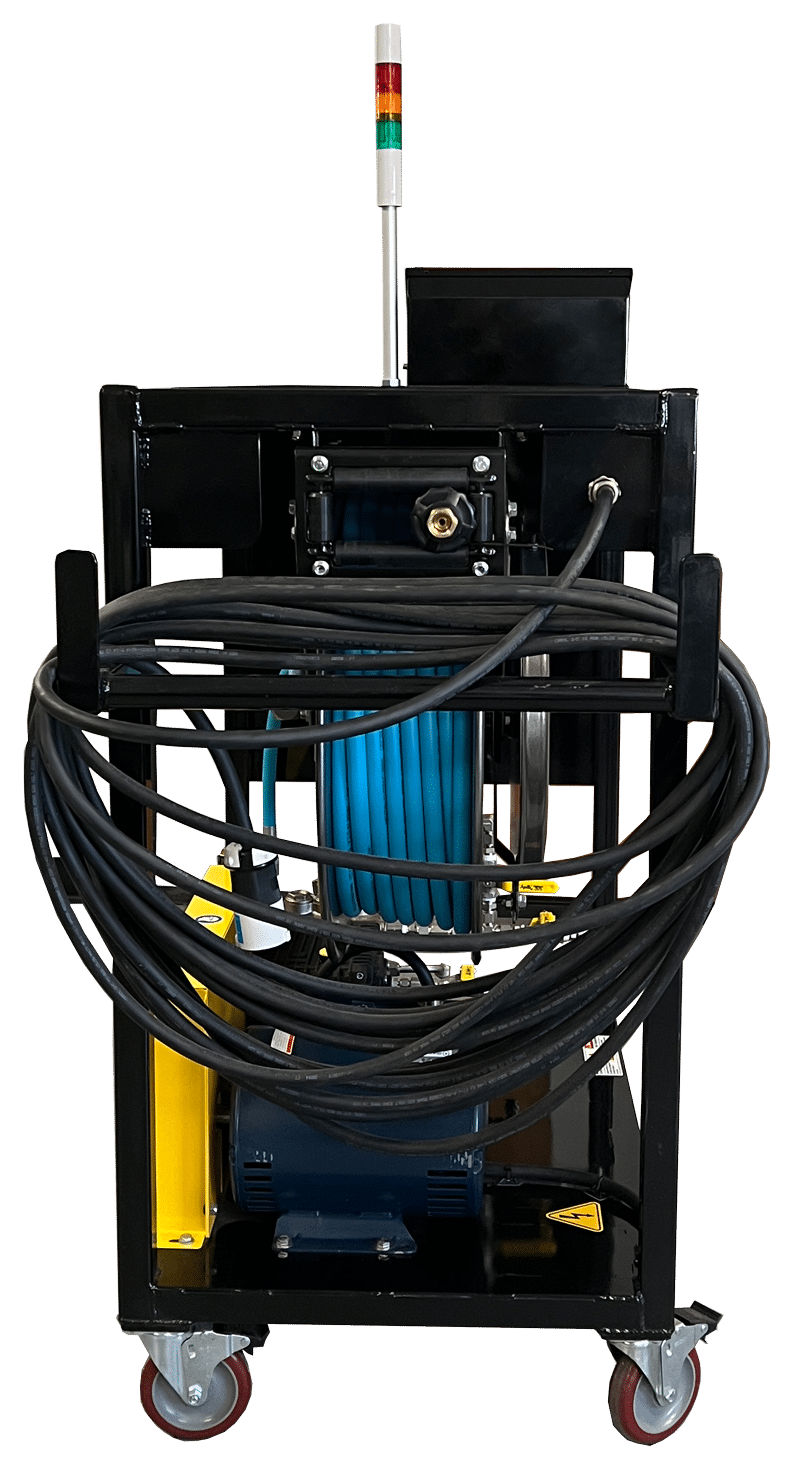

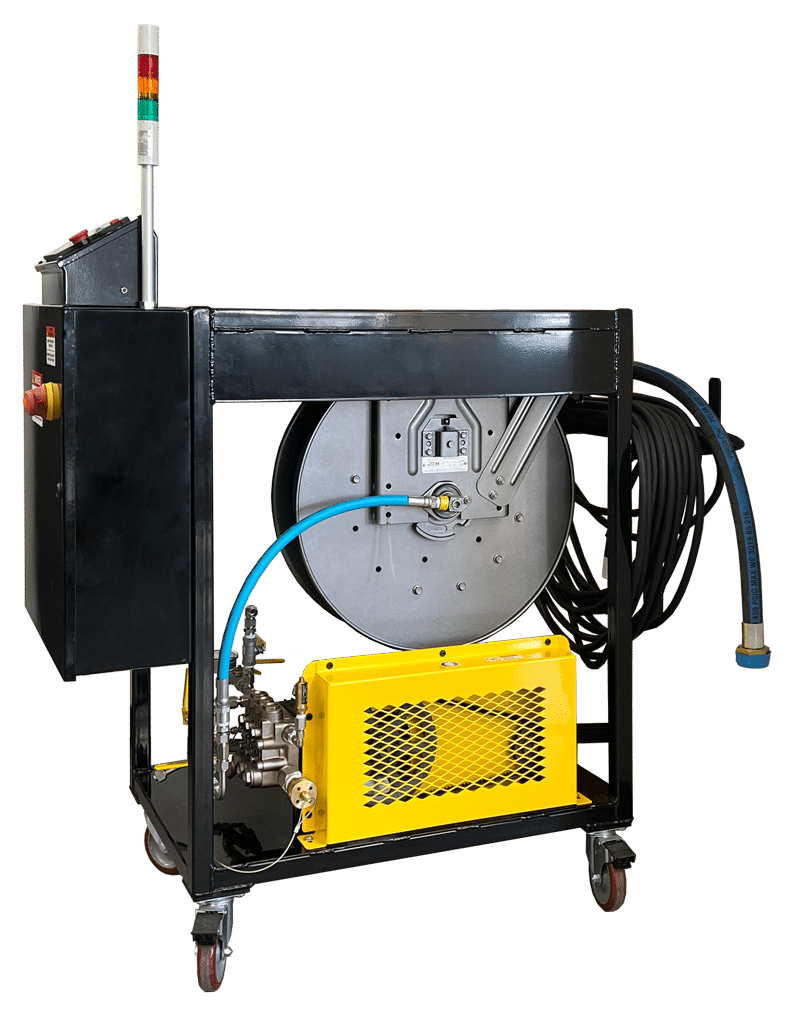

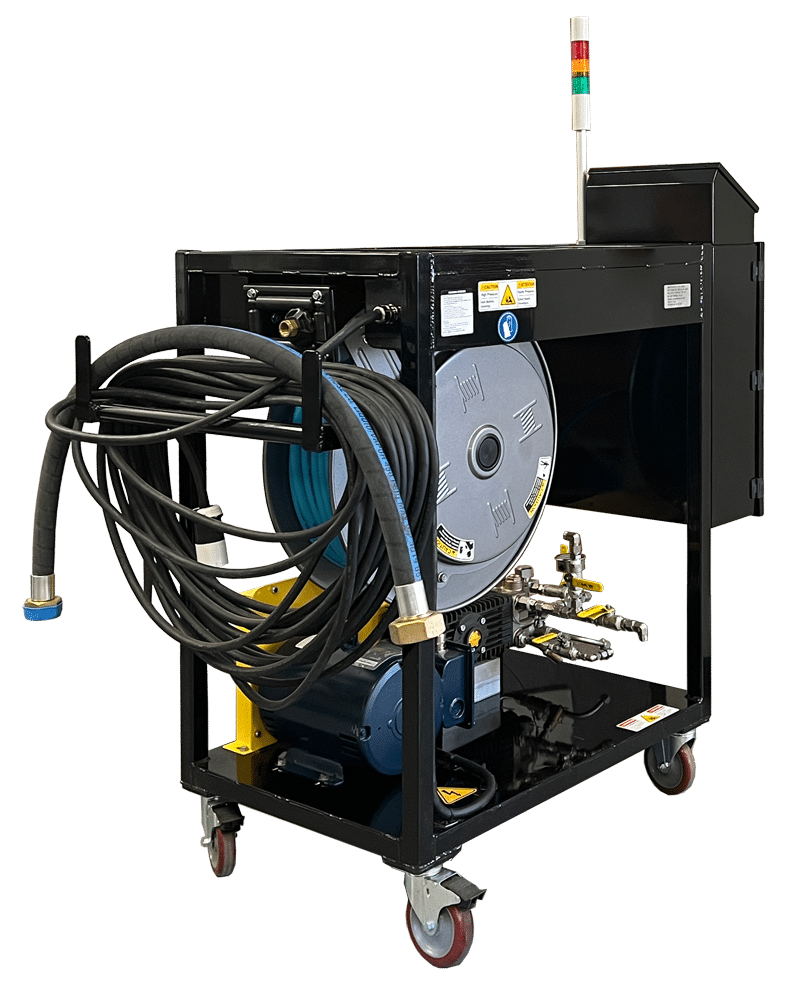

The MPCart is a step up CO₂ pump mounted on a moveable cart that is integrated with the operating functions of the CO₂ cage. It draws CO₂ from outdoor bulk storage tanks or supply trucks at 300 PSI and steps the pressure up to 800 PSI to keep the CO₂ Cage full.
