e-140 ScCO2 Extractor

Part Number: #10-0063 (208-230V) | #10-0099 (380V)

extraktLAB creates the most advanced and efficient CO₂ extractors for sale in the hemp botanical oils market.

The e-140, is capable of an impressive throughput of up to 422 pounds (192kg) per day – all within a footprint smaller than 25 sq ft. The e-140 can be scaled up or incorporated into a continuous automation process.

Talk to an Expert | Request a Quote

DOWNLOAD E-140 BROCHURE

Features and Benefits
Specifications
More Information

e-140 Supercritical CO2 Extractor FEATURES & BENEFITS

Sub or Supercritical CO2 Extractions
Automated Co-solvents & Gradients
Full Spectrum Extracts
Fully Automated Methods
UL, ASME, PED, EPR Certified Components
Scalable
GMP Compliant

PROCESSING POWER:
Up to 422 lbs (192 kg) per day; 8 kg per cycle; 60 min per cycle @ 10% potency; 90+% hemp efficiency; 95+% marijuana efficiency; 24 sq ft footprint; 67 Full Load Amps (FLA)

GMP COMPLIANCE:
Automated process control; Batch, operator, parameter tracking; FDA approved materials; Instrument calibrations; Clean in place; International certifications; Calibration/maintenance tracking

PROCESSING CONTROL:
Programmable methods including co-solvent, temp, and ingredients; Automated extraction cycles; Independent vessel control; 0-5000 psi; 0-100ºC; Cyclonic separation; Data capture/reporting

General Specifications

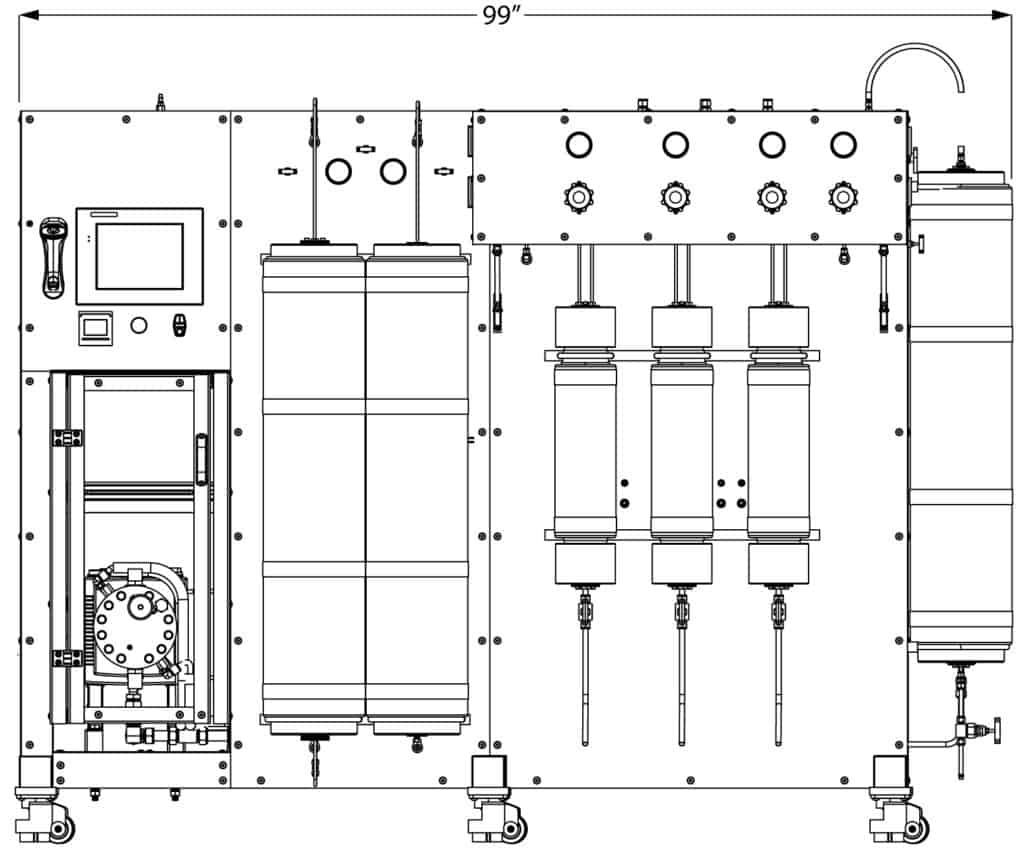

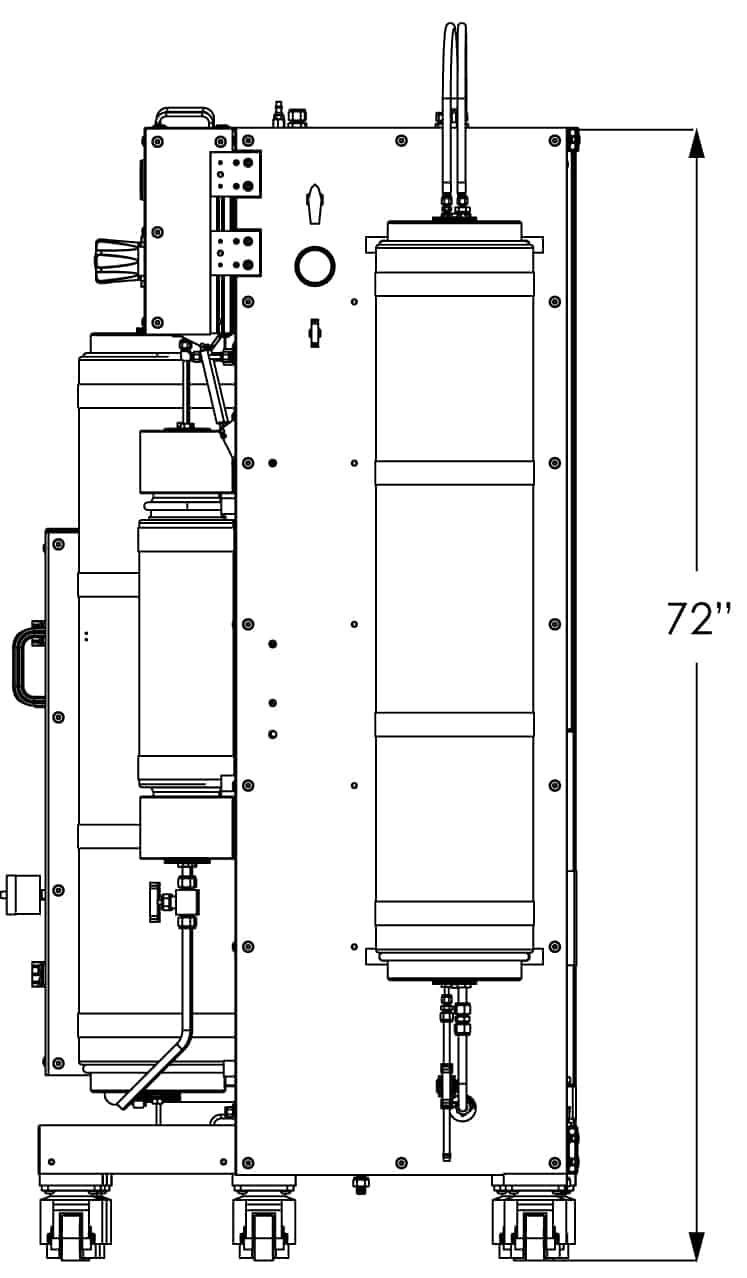

Dimensions (inches)	L99″ x W34″ x H72″
Footprint (square feet)	24
Unit Weight (pounds)	4300
Sound Pressure (db)	<50

CERTIFICATIONS, Listed:
UL 508A, CE, PED

REGULATORY COMPLIANCE:
21 CFR Part 117, 211, 177 and Health Canada equivalents, P.E. stamped according to ASME DIV II VII-2 PED compliant, CE marked, notified body Lloyd’s Register, CRN number

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

Every E-Series extractor from extraktLAB is built with automated process control, programmable methods, automated extraction cycles, maintenance tracking and data reporting to streamline production in a concise, powerful, intuitive extractor.

Each of these machines are built with GMP compliance in mind using FDA approved materials, batch, operator and parameter tracking and internal certifications all housed in FDA approved ASME 304 and 316 structural grade stainless steel.
