clearSTILL-400

Part Number: #10-0081 (208-230V) | #10-0143 (380V)

The clearSTILL 400 dual-stage wiped film evaporator doubles throughput and labor efficiency over any single-stage equipment using continuous, two-pass distillation technology in a single-contained processing cycle. For heat-sensitive or highly viscous fluids, engineered wipers create a thin film on the evaporator surface, enabling thin film evaporation and short-path condensation.

Talk to an Expert | Request a Quote

DOWNLOAD CLEARSTILL-400 BROCHURE

Features and Benefits
Specifications
More Information

clearSTILL-400 FEATURES & BENEFITS

Throughput capacity of 4-6L/hour
Continuous 2-Stage Distillation
Half the labor of single-stage systems
Double the volume of single-stage systems
Reduced Labor & Cleaning Downtime
Automated
Continuous feed from fracTron-1000

PROCESSING POWER:
Dual stills with continuous process flow; 2-stage distillation at 4-6L/hour; Oil-free pumps eliminate oil changes & oil contamination; Integrated cold-finger cleaner

GMP COMPLIANCE:
Lot, calibration and maintenance tracking; Barcode-enabled paper and electronic trail; Continuous containment between stages; Certified wetted materials; Easy clean-in-place capabilities; UL 508A; 21 CFR Part 11 compliant software

PROCESSING CONTROL:
Containment between stages; Programmable methods; Automated hardware control; Mass flow tracking of yields; Data visualization and alarms; WiFi enabled monitoring and control; Ultrasonic, laser, mass, and vacuum sensors enable superior process control capability

General Specifications

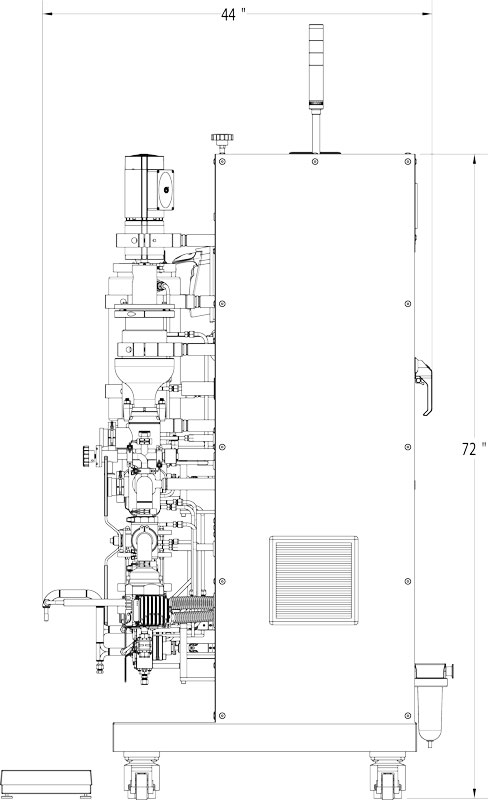

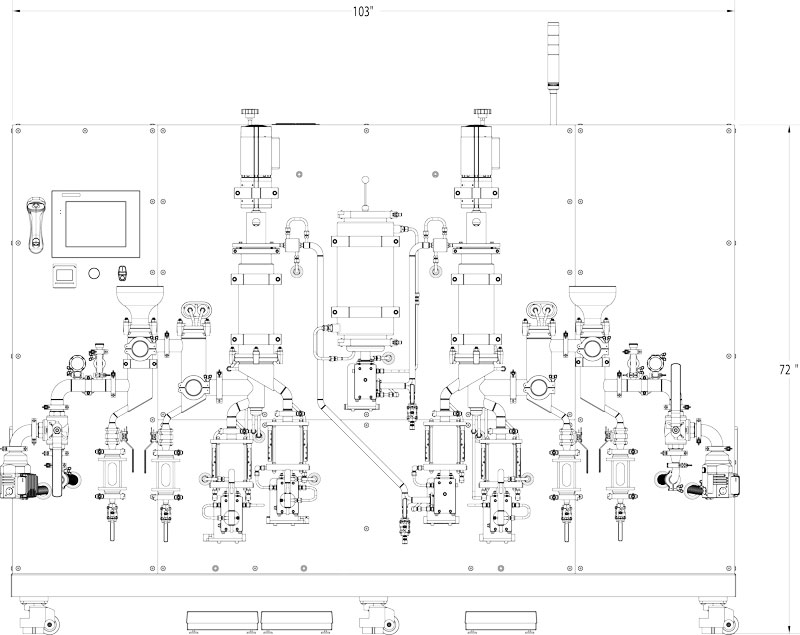

Dimensions (inches)	L103″ x W44″ x H72″
Unit Weight (pounds)	2155
Sound Pressure (db)	<60

CERTIFICATIONS:
UL 508A

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

With two separate thin film evaporator stills capable of a clean, continuous process and a throughput rate of 4-6 L per hour recovery, the clearSTILL 400 is capable of eliminating waste and contamination, doubling output, and halving labor costs compared to standard single-stage systems.
