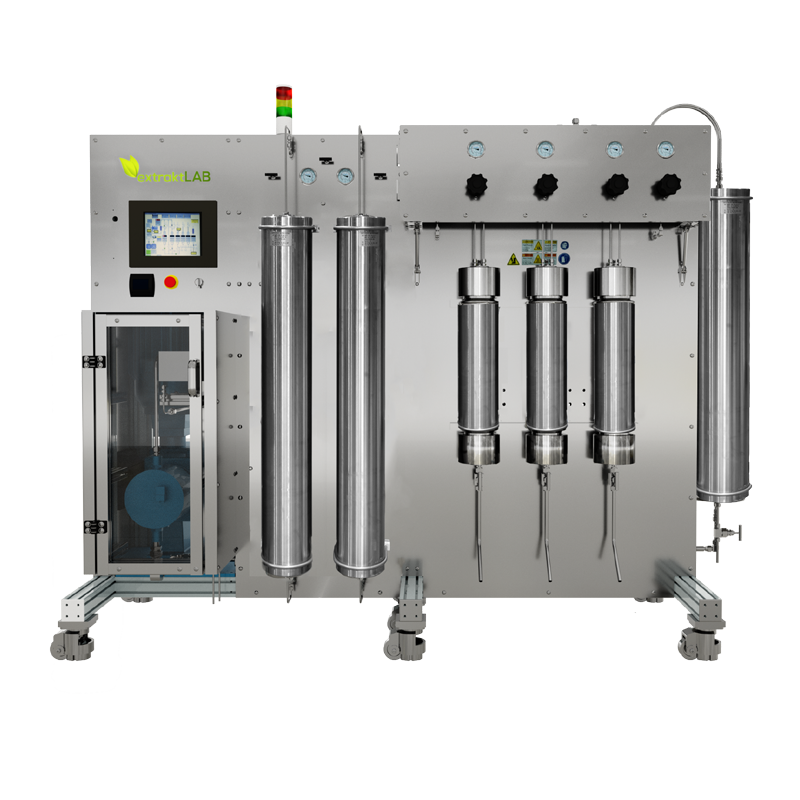

e-110 ScCO2 Extractor

Part Number: #10-0000 (208-230V) | #10-0153 (380V)

We know floor space is vitally important in determining what your processing operation can or cannot do. Our e-110 CO2 extractor fits most facilities while providing a throughput of up to 79 pounds (35.8kg) per day.

Talk to an Expert | Request a Quote

DOWNLOAD e-110 BROCHURE

Features and Benefits
Specifications
More Information

e-110 Supercritical CO2 Extractor FEATURES & BENEFITS

Sub or Supercritical CO2 Extractions
Full Spectrum Extracts
Fully Automated Methods
UL, ASME, PED, EPR Certified Components
Scalable
GMP Compliant

PROCESSING POWER:
Up to 79 lbs (35.8 kg) per day; 1.5 kg per cycle; 60 min per cycle @ 10% potency; 90+% hemp efficiency; 95+% marijuana efficiency; 24 sq ft footprint; 57 Full Load Amps (FLA)

GMP COMPLIANCE:
Automated process control; Batch, operator, parameter tracking; FDA approved materials; Instrument calibrations; Clean in place; International certifications; Calibration/maintenance tracking

PROCESSING CONTROL:
Programmable methods; Automated extraction cycles; Independent vessel control; 0-5000 psi; 25-100ºC; Cyclonic separation; Data capture/reporting

General Specifications

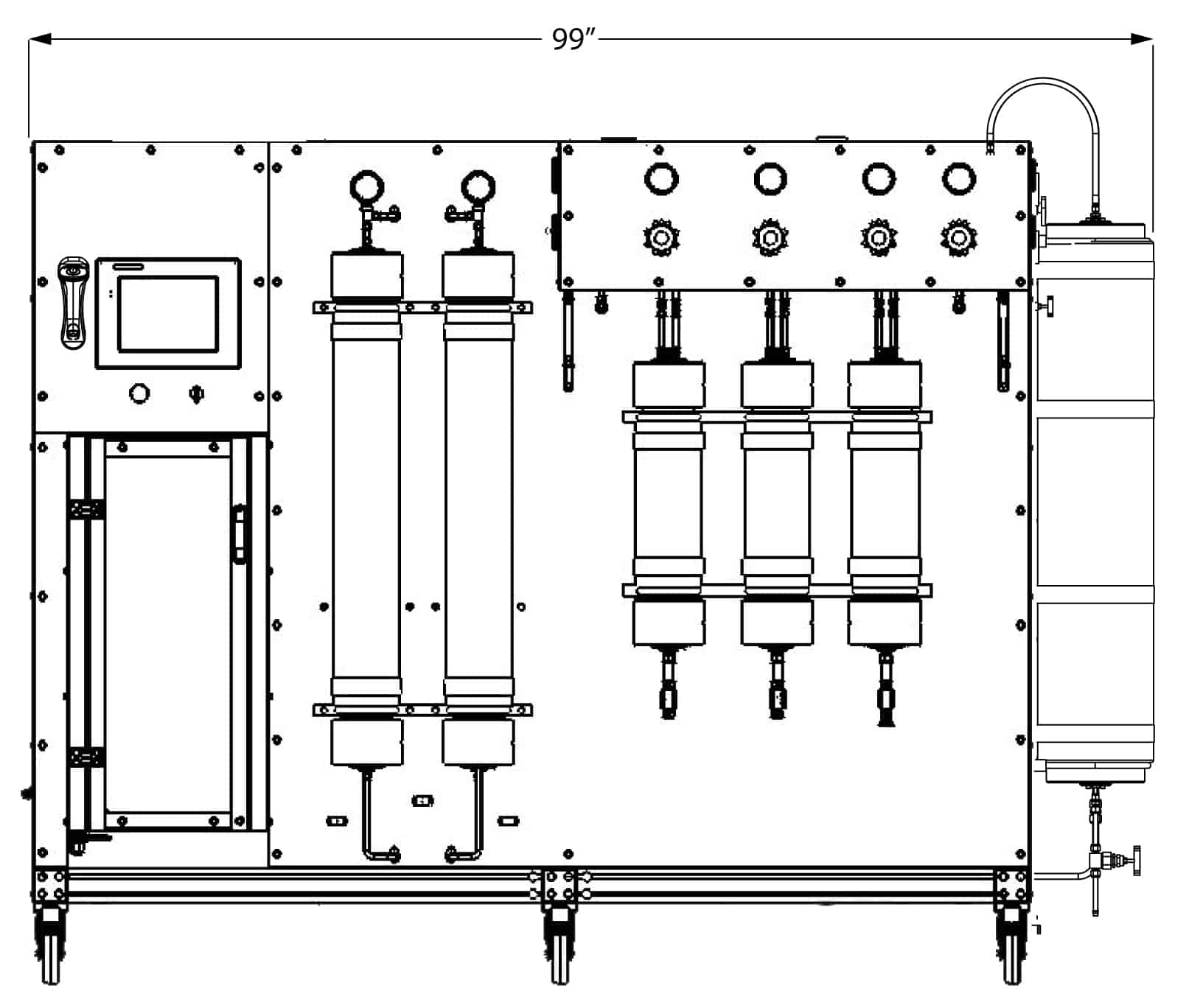

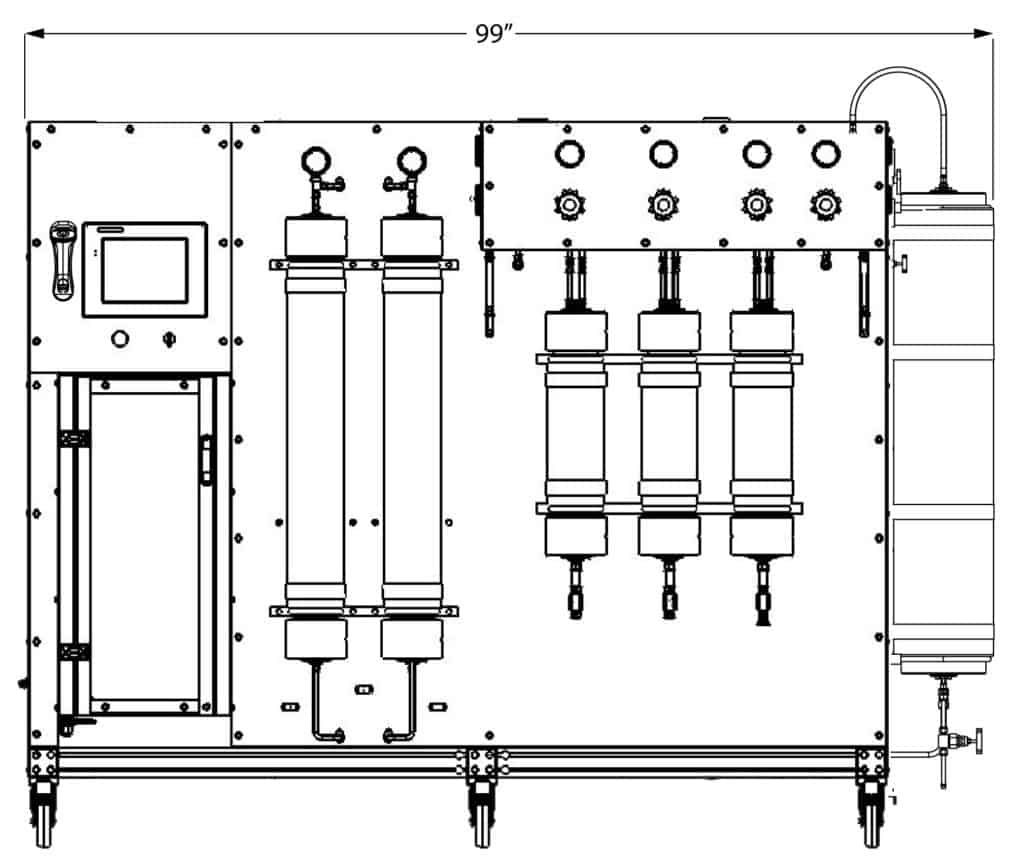

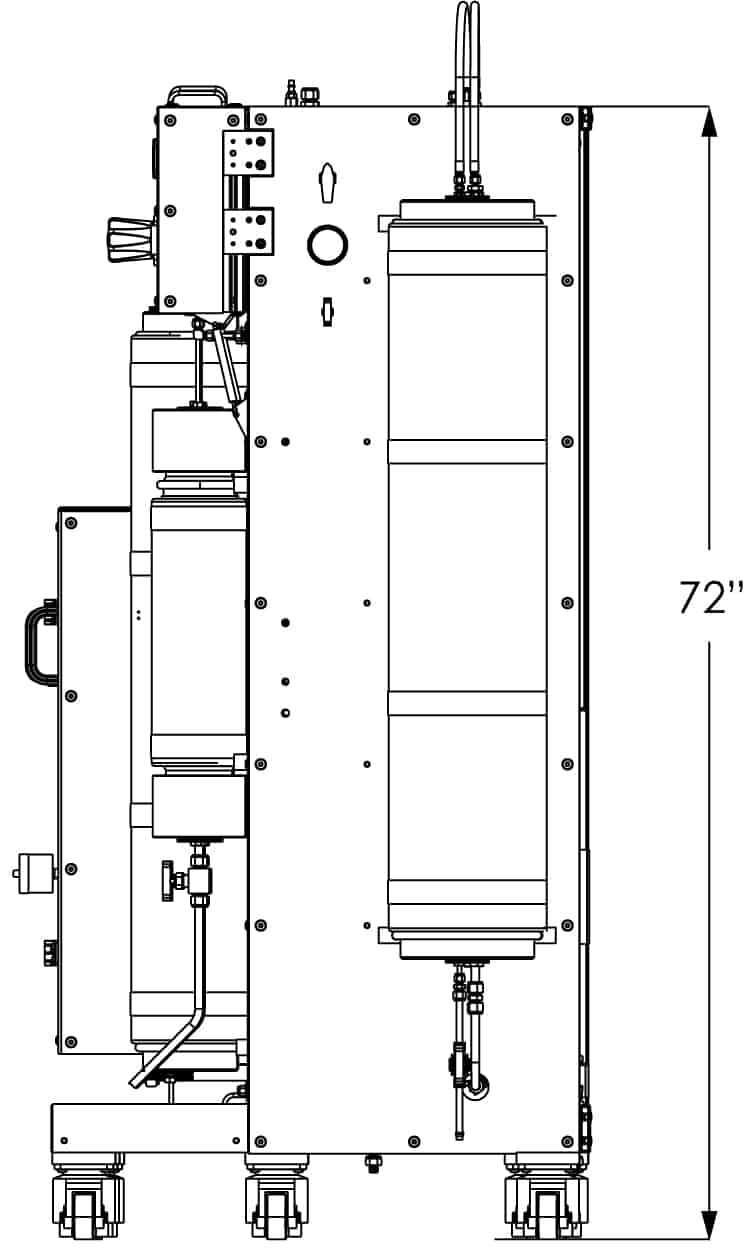

Dimensions (inches)	L99″ x W34″ x H72″
Footprint (square feet)	24
Unit Weight (pounds)	3000
Sound Pressure (db)	<40

CERTIFICATIONS, Listed:
UL 508A

REGULATORY COMPLIANCE:
21 CFR Part 117, 211, 177 and Health Canada equivalents, P.E. stamped according to ASME DIV II VII-2 PED compliant, CE marked, notified body Lloyd’s Register, CRN number

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.
