EtoD Automation

Part Number Option:

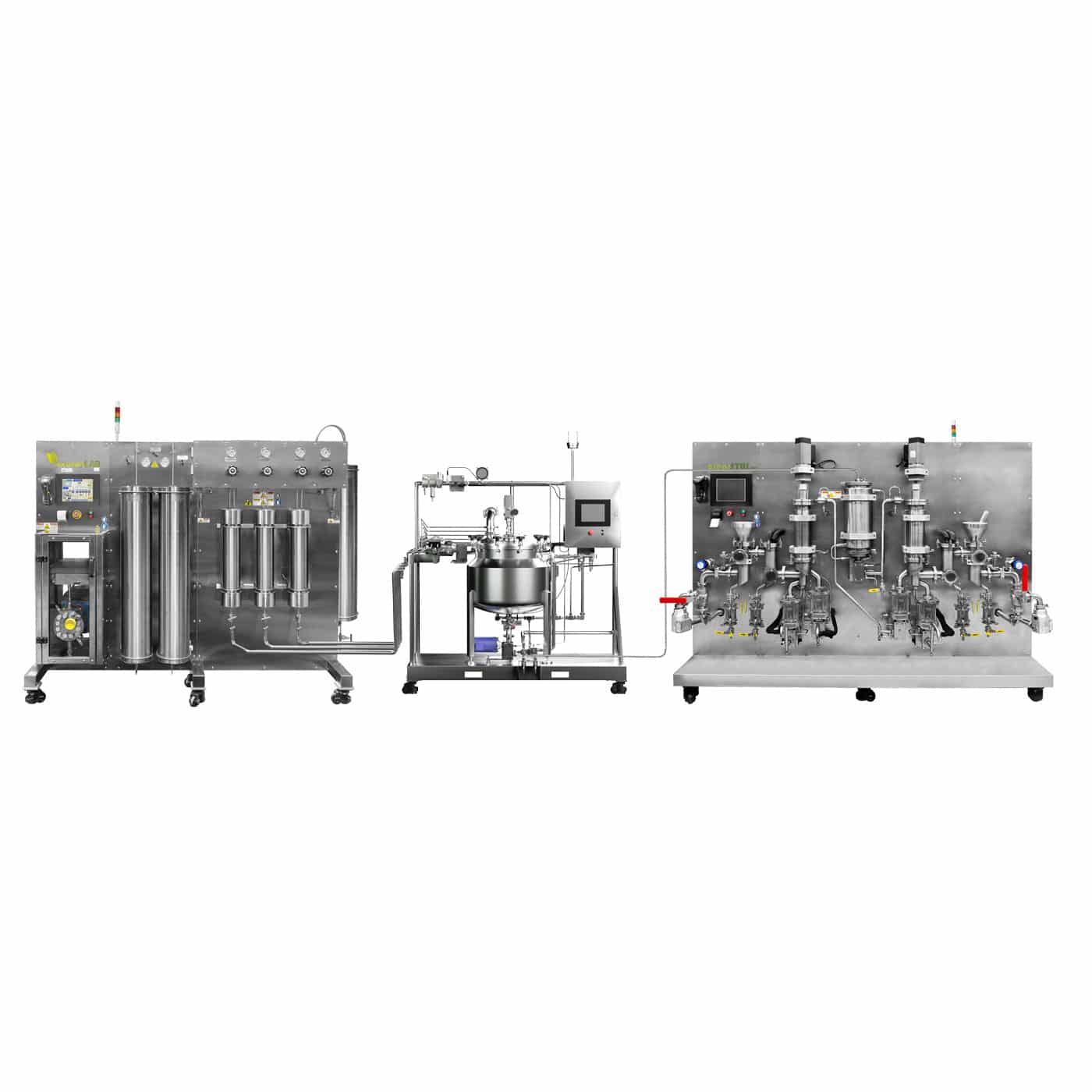

e-140 EtoD System #10-0190 (208-230V) | #10-0091 (380V)

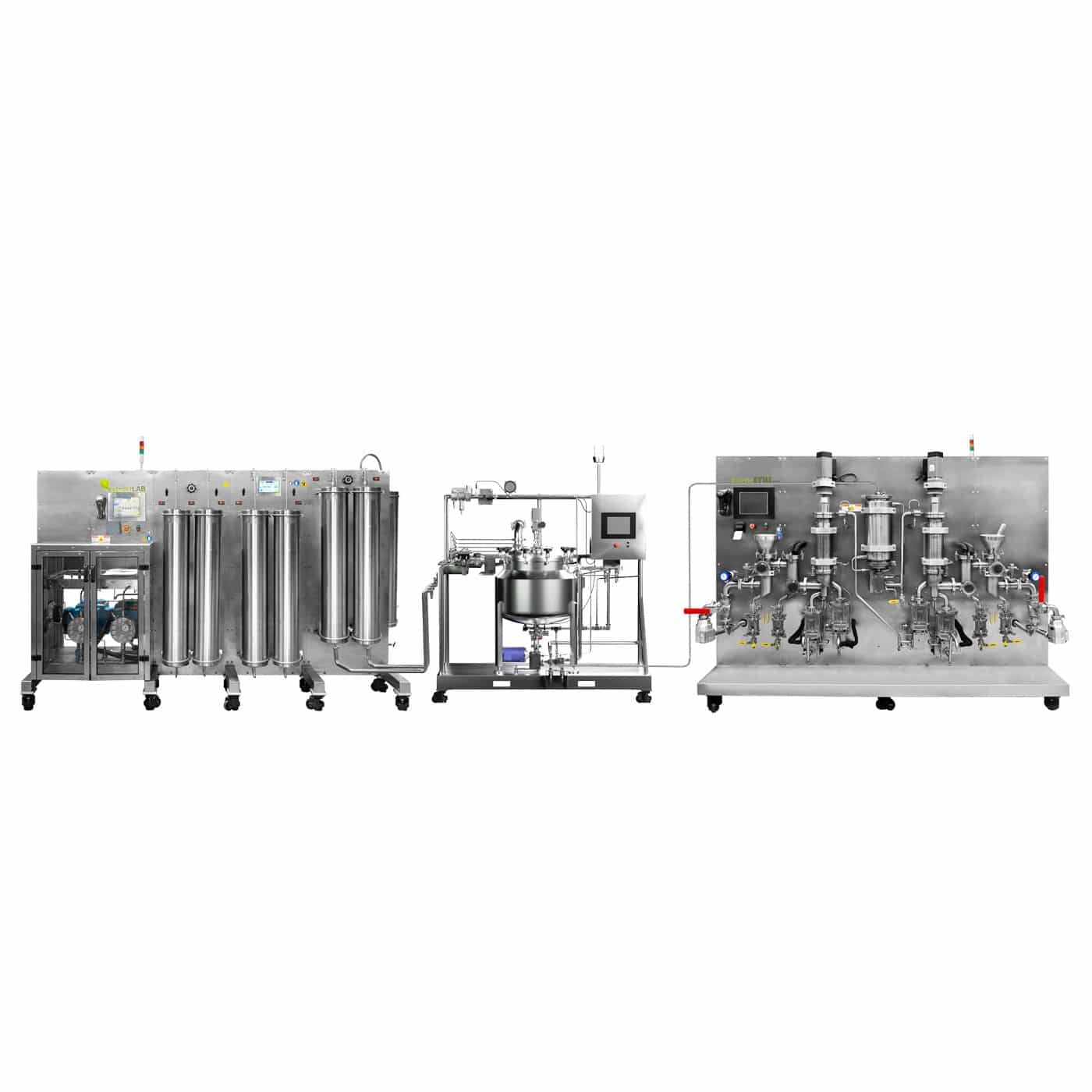

e-180 EtoD System #10-0192 (208-230V) | #10-0093 (380V)

EtoD, or extraction through distillation, is a system including your choice of e140 or e180 extractor, the E2Di, and clearSTILL-400. This is the perfect option for a first time setup, a facility with no previous equipment.

Talk to an Expert | Request a Quote

DOWNLOAD Etod BROCHURE

Features and Benefits
Specifications
More Information

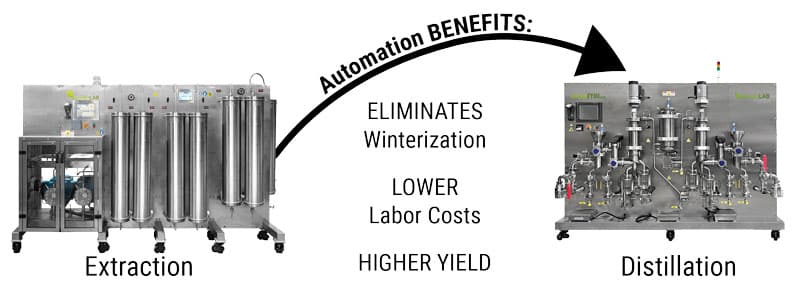

EtoD FEATURES & BENEFITS

Sustainable CO2 Extraction
No Ethanol
Eliminate Winterization
Automation & Containment Systems
High Yield
Reduced Infrastructure Requirements, Downtime, Labor Costs, and Overhead

These are the specifications for the E2Di, which connects your choice of the e-140 or e-180 to the clearSTILL-400. The e-140, e-180, and clearSTILLL-400 each have a separate set of specifications.

GMP COMPLIANCE:
Intended for use with distilled extracts
Process: Dissolution, mixing, precipitation, filtration, solvent recovery
Containment: Contained process
Lubricants: None in direct contact. No contact with process fluids
PLC GAMP5: Category 3
Materials Traceability & Manufacturers’ DOC for Contact Materials
Seals: PTFE, Vitron

SYSTEMS CLASSIFICATIONS:
E2Di unit:
Type: Direct Impact
Documentation: Commissioning, Qualification

Heater:
Type: Indirect Impact
Documentation: GEP Startup

Sweep Gas:
Type: Indirect Impact
Documentation: Commissioning, Qualification

CLEANABILITY:
Surface Finishes: 0.8 µm or better on all contact surfaces
Welds: Ground, argon purged;
Fittings: Combination of compression and sanitary
CIP: Sprayball, low point fluid exit
CIP Unit: External

CERTIFICATIONS:
Includes certifications of the e-180/e-180, E2Di, and clearSTILL-400

RECOMMENDED, SOLD SEPARATELY:
Heater, 1-zone, 6 kW, Recirculating Oil #80-0892 (240V) | #80-0891 (380V)
Chiller, 5hop #80-4018 (240V) | #80-4097 (380V)

ALSO AVAILABLE, SOLD SEPARATELY:
EtoD System Qualifications & Tests (includes DQ/IQ/OQ/FAT/SAT); GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

WATCH | Extraction Automation Case Study #2

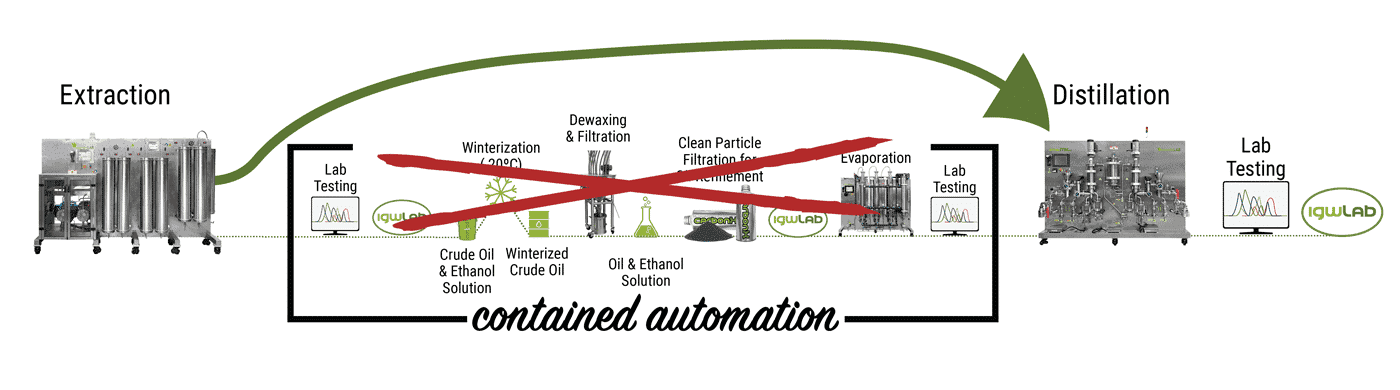

The continuous automation solution process is a contained system providing automation from high pressure CO2 extraction through wiped film distillation. This continuous flow system promotes increased yield with a reduced cycle time. The uniquely designed interface provides oil transfer, CO2 venting, and oil metering.
