e-180 ScCO2 Extractor

Part Number: #10-0010 (208-230V) | #10-0147 (380V)

This e-180 is currently our largest supercritical CO2 extractor with a massive throughput of up to 844 pounds (382.8 kg) per day, within a footprint of 48 sq ft. The e-180 can be scaled-up with additional e-180s to get to a throughput of up to 5,064 pounds (2,297 kg) per day. There is also the option to incorporate the e-180 into a continuous automation process.

Talk to an Expert | Request a Quote

DOWNLOAD E-180 BROCHURE

Features and Benefits
Specifications
More Information

e-180 Supercritical CO2 Extractor FEATURES & BENEFITS

Sub or Supercritical CO2 Extractions
Automated Co-solvents & Gradients
Full Spectrum Extracts
Fully Automated Methods
UL, ASME, PED, EPR Certified Components
Scalable
GMP Compliant

PROCESSING POWER:
Up to 844 lbs (382.8 kg) per day; 16 kg per cycle; 60 min per cycle @ 10% potency; 90+% hemp efficiency; 95+% marijuana efficiency; 48 sq ft footprint; 85 Full Load Amps (FLA); Optional pump for solvent or cleaning methods

GMP COMPLIANCE:
Automated process control; Batch, operator, parameter tracking; FDA approved materials; Instrument calibrations; Clean in place; International certifications; Calibration/maintenance tracking

PROCESSING CONTROL:
Programmable methods including co-solvent, temp, and ingredients; Automated extraction cycles; Independent vessel control; 0-5000 psi; 0-100ºC; Cyclonic separation; Data capture/reporting; Automation sold separately

General Specifications

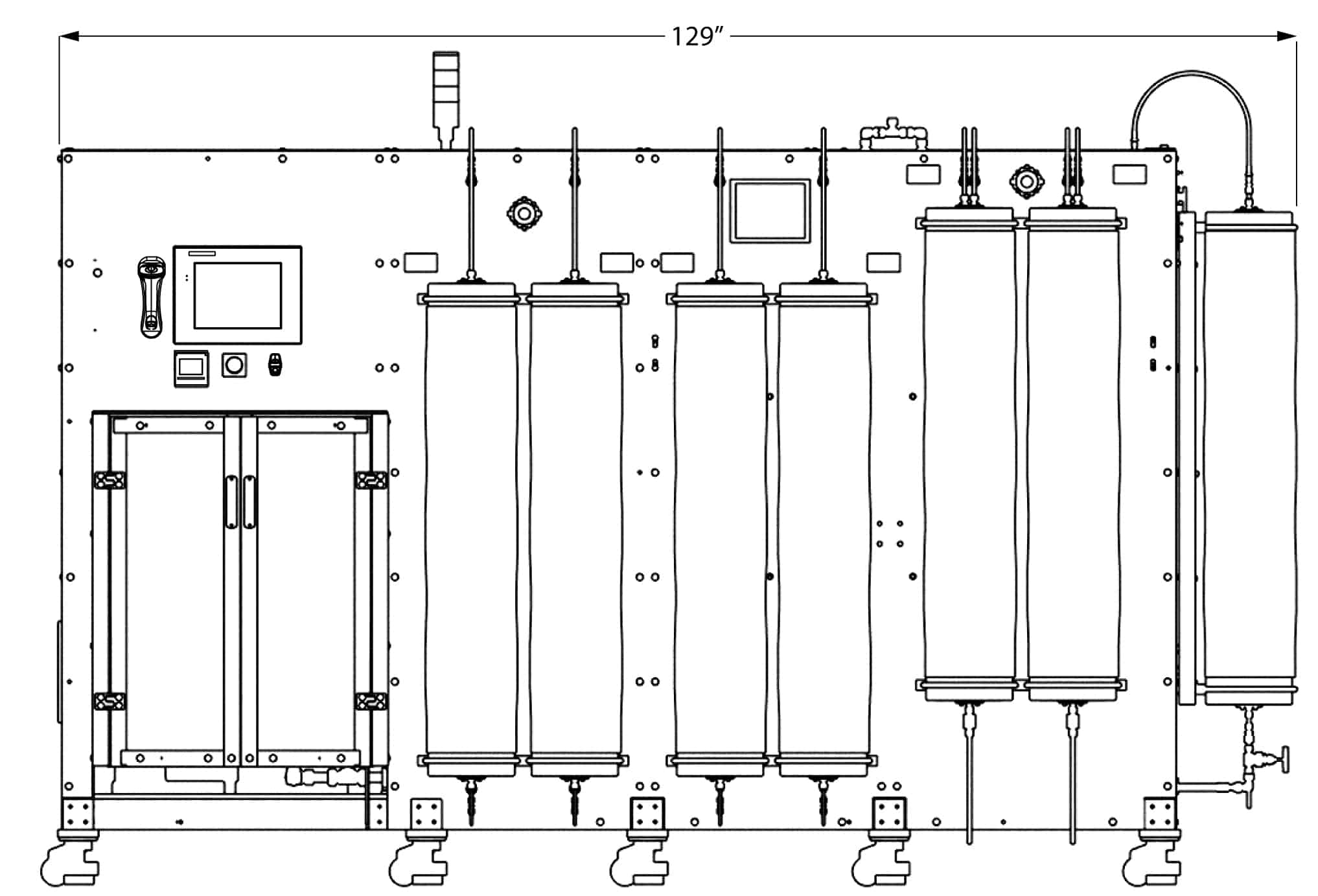

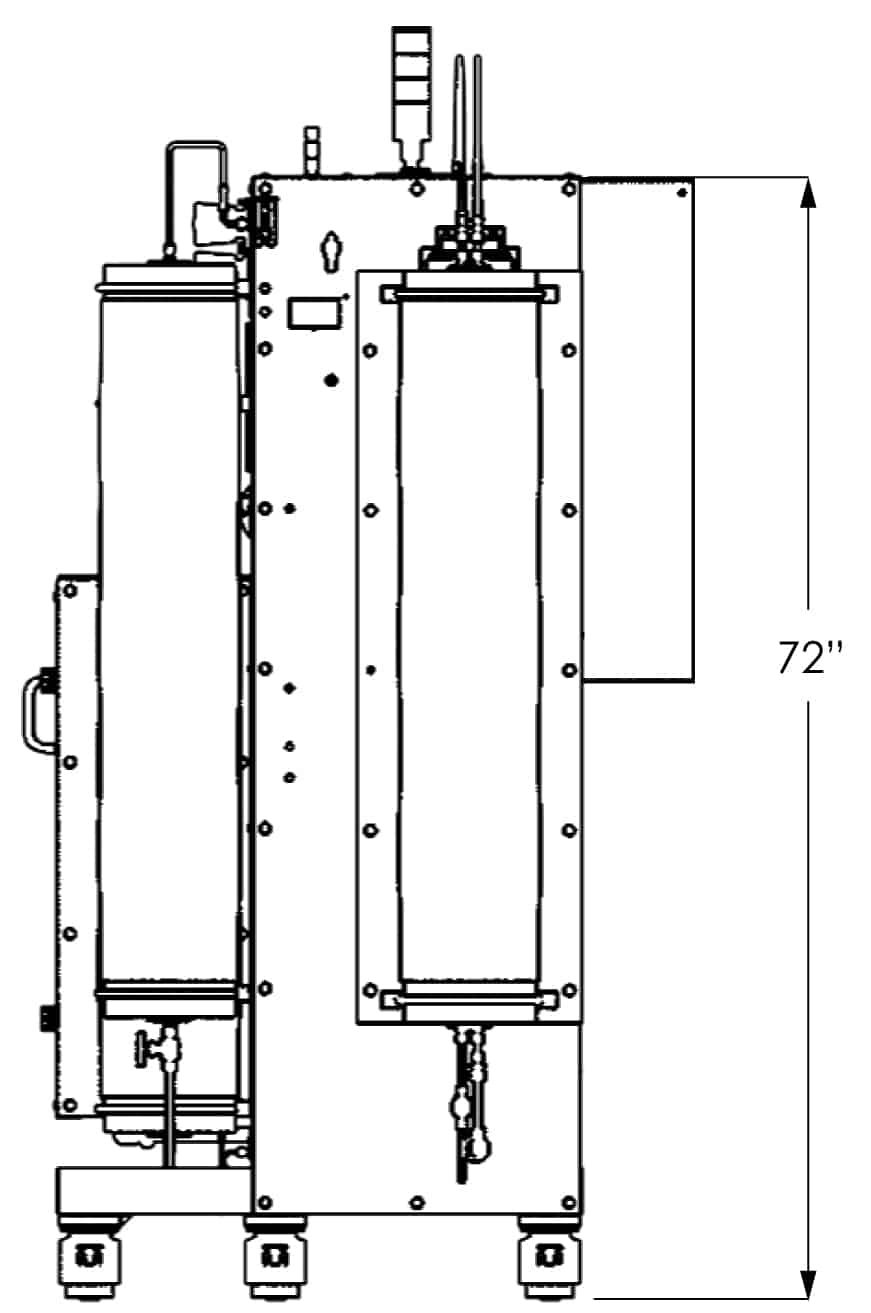

Dimensions (inches)	L129″ x W53″ x H72″
Footprint (square feet)	48
Unit Weight (pounds)	6200
Sound Pressure (db)	<50

CERTIFICATIONS, Listed:
UL 508A, CE, PED

REGULATORY COMPLIANCE:
21 CFR Part 117, 211, 177 and Health Canada equivalents, P.E. stamped according to ASME DIV II VII-2 PED compliant, CE marked, notified body Lloyd’s Register, CRN number

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

The e-180 is the largest of the extraktLAB supercritical CO2 extractors. It can be used alone or with additional units to increase throughput up to 5,064 pounds per day.

The e-180 is designed to provide high yield in a short period of time while staying GMP compliant.

CO2 has been used historically to extract many different kinds of biomass.
