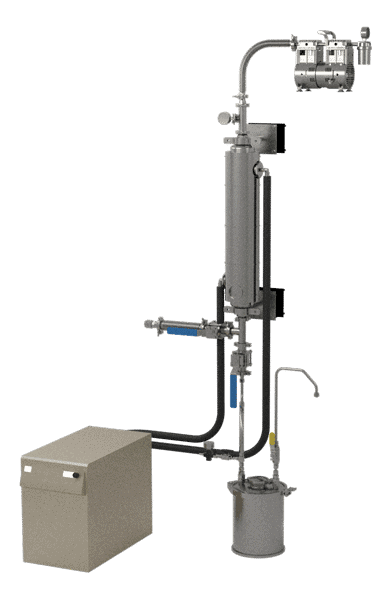

terpTRAP

Part Number: #10-0113 (208-230V/380V)

The terpTRAP terpene recovery module from extraktLAB is the most versatile cold trap available for terpene and vapor recovery in pre-extraction decarboxylation processes. The heat exchanger is capable of 20 tons of heat exchange capacity and process connections to support chilling, vacuum, and condensates produced by the largest decarboxylation processes. Food grade contact surfaces allow for recovery of terpenes for use in downstream formulations prior to coming in contact with ethanol or other extraction solvents.

Talk to an Expert | Request a Quote

DOWNLOAD terptrap BROCHURE

Features and Benefits
Specifications
More Information

terpTRAP FEATURES & BENEFITS

Versatile Design to Protect Vacuum Pumps
Full Spectrum Terpene Recovery
GMP Compliant Product Contact Surfaces
Scalable up to 10 tons/day (Depending on Biomass Moisture Content)
Maximize the Throughput of Any Decarboxylation System

PROCESSING POWER:
4 gallon standard collection vessel; Heat exchange area: 21.64 sq ft; 1 HP standard chiller size; Relative vacuum rating: 0 to 27.8 “Hg

GMP COMPLIANCE:
UL 508A; Metals: 316 Stainless Steel; Polymers: Viton, Buna-N; FDA approved materials: International certifications

PROCESSING CONTROL:
Decarboxylation vapor recovery; Vacuum pump cold trap; Decreasing moisture carryover to ethanol; compatible with high CFM & low-pressure vacuum pumps

General Specifications

Dimensions (inches)	L52″ x W47″ x H89″
Unit Weight (pounds)	130
Sound Pressure (db)	<60

CERTIFICATIONS:
UL 508A

ALSO AVAILABLE, SOLD SEPARATELY:
GMP Documentation Package; Commissioning and Training Package; Maintenance Package (12 Months)

WARRANTY:
12 months for quality, labor, parts, and workmanship on United Science equipment.

Watch Part 2 | Are You Throwing Away Money?!

The terpTRAP has innovated terpene recovery to the highest possible efficiency. This cold trap system contains a four gallon standard collection vessel and depending on biomass moisture content can be scaled up to handle a staggering 10 ton per day processing throughput. These capabilities are far higher than other cold trap systems developed by competing extraction companies in the hemp and cannabis extraction industry.
